Schionning Arrow 1280 S

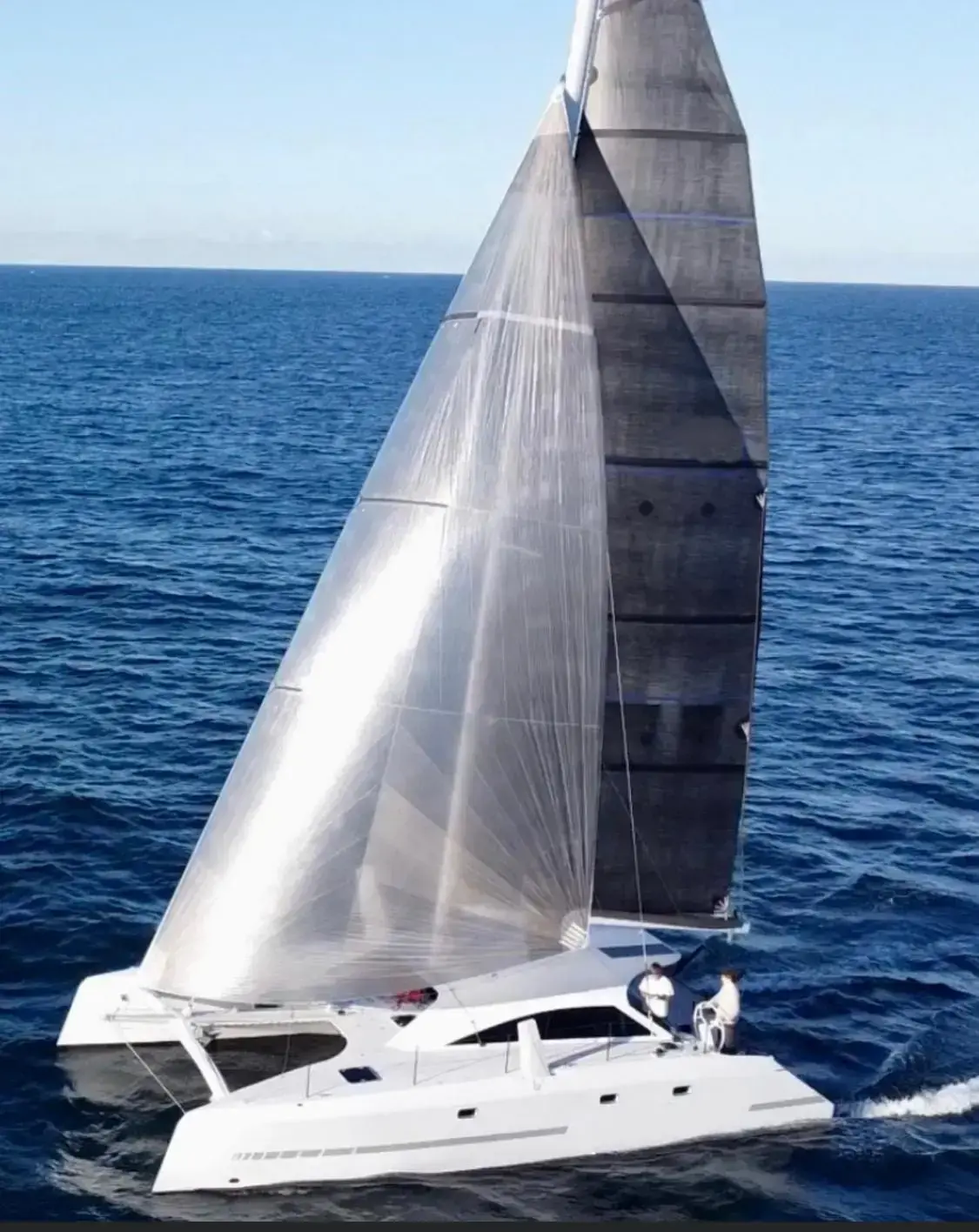

This high-tech vessel is currently under construction and nearly completed. It can be bought outright as a finished vessel, or we can finish the boat to your spec. Please call for current pricing and check out the build process on the website or follow here. Ojigwan Yachts specializes in yacht building featuring custom composite construction and fabrication. We do vacuum infusion, wet lamination under vacuum and typical resin/fiberglass layup. We use carbon fiber and fiberglass construction and primarily use epoxy resin. We have the facility to perform new construction, high-performance upgrades, paint, and building of custom parts. Our team has extensive sail and power boating experience and we have a USCG Captain on staff. We support all phases of boat building and have partnerships with designers to assist in the development of custom components. Pictures of the completed boat are released from the designer.

Specifications

LOA: 12.80 Meters/42 Ft

BOA: 6.80 Meters/22.3 Ft

Draft: .400 Meters/15.75 Inches

Mast Height: 17.00 Meters/55 Ft

Payload: 1500 Kg/3300 Lbs

Displacement: 4500 Kg/10,000 Lbs

Bridgedeck Clearance: .750 Meters/2.45 Ft

Beam to Length Ratio: 15.2:1

Engines: 2 30 HP Yanmar with Saildrives

Cruising Speed: 16-19 Knts

Top Speed: 15+ Knts

Sails And Rigging

Sails, Mast and Rigging

Sails: Evolution Main Element Membrane (Liteskin) Color Black

61 m2 70/30 carbon/twaron 3 Reefs Full batten squaretop

Self Tacking Furling Jib 35 m2

Liteskin Black Vertical Battens

Screecher 73 m2

Evo Technora

Continuous furler A 2.5 Spinnaker

135 m2 Black Glow tapes in luff seams ATN snuffer sleeve

Mast: Carbon Fiber fixed (Est. Delivery Aug 2024 NZ Rigging) Halyard configuration:

* One main halyard 2:1

* One Main Topper

* 1 x masthead Spinnaker Halyard

* 1 x Genoa below Forestay

* 1 x 2:1 Screecher Halyard Above f/stay

* 1 x 1:1 Spinnaker above f/stay

Park Ave Style Boom Composite Top Plate style wings for sail support

Standing Rigging: Diamonds

Standing Rigging – Aramid rigging (Uni Direction Kevlar Fibers) Self Tacking Jib with Profurl R430 x 18mtr Furling system Carbon fiber park avenue boom with sail jacks

Hull And Deck

Hull and Deck

3 double bed staterooms

Epoxy resin infused closed cell core flat panels with fiberglass cloth. Carbon fiber used in high load areas (fore beam to hull bulkheads), daggerboards, dagger trunks, forestay, and rudders.

Deck hardware: Harken 42 self-tailing winches (6 total) Harken track and blocks

Daggerboards: Carbon fiber painted to match hull

Rudders: Carbon fiber with stainless steel shaft

Forward beam: Carbon fiber with carbon fiber tabbing to hull bulkheads

Hull panels: Infused epoxy laminates on closed cell core panels Joined with cabosil/cotton flock high density fillers and epoxy/fiberglass tape lines Faired with epoxy 2 part fairing compound

Engines: 2X Yanmar Engine 29hp w/SD (3YM30AE) Inboard Diesels Yanmar saildrives with gori 3 blade folding props High output alternator (125 amp)

Fuel tank: 70 Gal Diesel

Fresh Water: 75 Gal

Holding Tank: 20 Gal

Paint: Boat can be painted to suit customer preference (any Awlgrip/Awlcraft product)

1 head – Option to add a second under single forward bunk.

Standalone shower Cooktop 3 burner gas cooktop

Electrical

Electrical

2 x VICTRON LITHIUM BATTERY 12VDC – 330AH – SMART LIFEPO4 (total of 660 AH @ 12VDC)

VICTRON QUATTRO INVERTER/CHARGER 12 VDC – 5000W -DUAL 100AMP 120VAC INPUTS – AUTO TRANSFER SWITCH – 200AMP BATTERY CHARGER –

2 x VICTRON GALVANIC ISOLATOR VDI-32A 32A MAX WATERPROOF VICTRON BLUE SMART IP65 CHARGER 12/5(1) 120V

2 x VICTRON VE.BUS BMS F/VICTRON LIFEPO4 BATTERIES 12-48VDC WORKS W/ALL VE.BUS

VICTRON ORION-TR SMART 12/12-30 30A (360W) ISOLATED DC-DC CHARGER OR POWER SUPPLY

VICTRON BMV-712 BLACK SMART BATTERY MONITOR VICTRON SMARTSOLAR MPPT CHARGE CONTROLLER – 100V – 50AMP – UL APPROVED VICTRON COLOR CONTROL GX MONITOR – BUTTON CONTROL VICTRON SMART BATTERYPROTECT – 220AMP – 6-35 VDC – BLUETOOTH CAPABLE

6 electric bilge pumps 2 x 12 V, 70 A/h engine starter batteries with bipolar battery isolating switches

1000 W vertical electric windlass Navigation lights (LED), masthead light, mooring light (LED) and deck light.

Shore power outlet with differential circuit breaker and galvanic protection

Navigation

Navigation

Dual B&G Zeus S 9 Chartplotter AMER. 9-inch SolarMAXTM high definition display. Built-in GPS, and WIFI, 1 kW echosounder. Unique Sailing Modes and enhanced sailing features, Next-generation C-MAP DISCOVERTM X chart included.

Dual Triton2 Speed / Depth / Wireless Wind Instrument pack. Includes 2x Triton2 Instrument Display, DST810 Depth/Speed/Temperature transducer, WS320 Wireless Wind Sensor and a NMEA2000 starter kit.

The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.

B&G V60 fixed-mount DSC VHF Radio – Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS. With Masthead antenna.

Optional Equipment

Optional Equipment

Dual carbon fiber helms (clear coat, white or black) Autopilot B&G AIS transmit B&G Radar – HALO20 Radar

Tender and outboard (Carbon fiber lightweight option available) OC330 TENDER with 15hp 4 stroke Yamaha

Second head to be built under starboard forward single bunk. Second helm throttle station: AC/Reverse cycle can be added per customer requirement. Solar capacity will be tailored to customer requirements

Freezer - Engel stand-alone DC/AC fridge or freezer

Water maker - boat will be plumbed for a water maker
