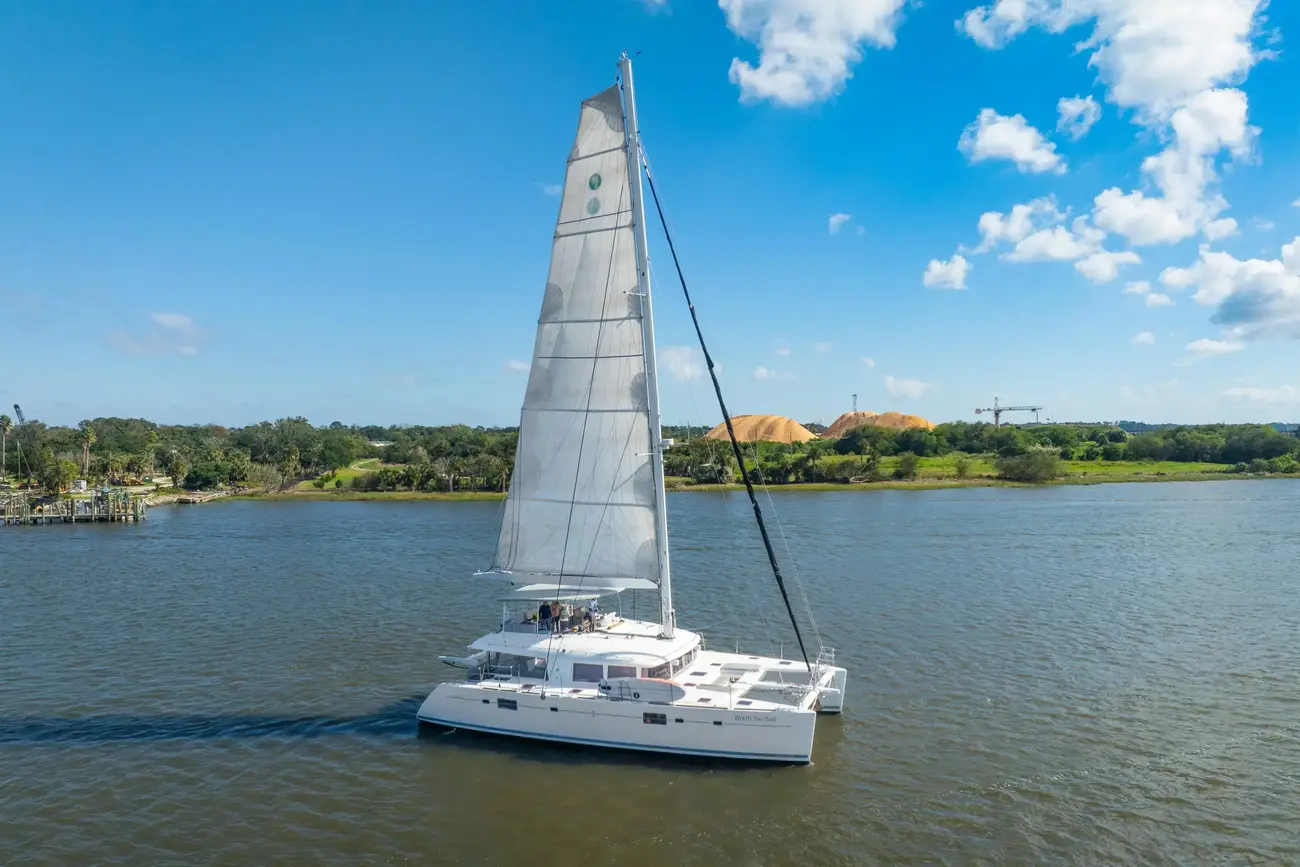

Lagoon 560 Worth The Wait

Boat Overview

Year: 2012

Model: Lagoon 560

Name: Worth the Wait

Ownership: Two Owners | Never Chartered

Usage: Full-time liveaboard for a family of four over the past three years

Location: Circumnavigated the entire Caribbean several times

Condition: Turnkey, maintained in prime condition with thoughtful upgrades

Current Price: Not specified

Mechanical & Propulsion

• Tanks: 2 x 171 Gallon Diesel


• Engines: 2 x 2012 Yanmar 4JH4-HTE 110-horsepower


• Hours: Port 5,579 | Starboard 5,350


• New Motor Mounts: June 2025


• Transmission: 2 x ZF Marine model ZF631V V-Drive


• Gear Ratio: 2.48:1


• New Shaft Seals: June 2025


• New Shaft Bearings: June 2025


• Propellers: 2 x 3-blade bronze folding


• Steering: Lecomble & Schmitt manual hydraulic


• Autopilot Hydraulic: Lecomble & Schmitt 24VDC hydraulic pump


• Rudders: 3 Stainless steel stock with fiberglass/foam rudders


• New Rudders: October 2022


• Emergency Steering: One-piece aluminum tiller

Sails, Rigging, & Deck Hardware

• Mainsail: Incidence Square-top mainsail with full length battens – 3-reef points


• Headsails:



  • Incidence Roller furling genoa with Facnor LS320 furler


  • Barely used Incidence Roller furling nylon gennaker with Facnor FX-7000 furler






• New Standing Rigging: 2020 – Diamonds replaced in 2023


• Rigging Tuned: 2023 by Nance & Underwood


• Mast: SparCraft painted aluminum (spliced two-piece)


• Spreaders: SparCraft double aluminum swept-aft foil-shaped


• Boom: Carbon/fiberglass composite Canoe open type boom with painted finish


• Traveler: Harken end-boom line-controlled double car on track

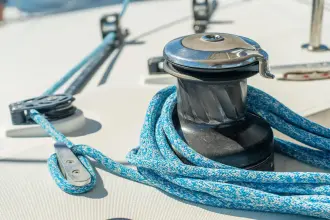

• Winches: 4 x Harken #70 2-speed electric self-tailing

Plumbing & Water Systems

• Fresh Water Tanks: 4 x 63 Gallons


• Freshwater Pump: 4 x Jabsco PAR=MAX HD4 Freshwater Pumps


• Watermaker: SeaWater Pro 40 GPH (NEW August 2025)


• Deck Washdowns: 2 x deck washdown


• Gray Water System:



  • 6 x sinks (one in each cabin, one in galley, one in cockpit)


  • 1 sump pump in each hull for shower and heads






• Black Water System:



  • 4 x 19 Gallon Polyethylene tanks


  • 4 x Tecmo electric freshwater flushing toilets


  • 2 x Jabsco manual saltwater flushing toilets (in forepeak)






• Bilge Pump System:



  • 2 x electric (on each side)


  • Manual on starboard port


  • 2 x electric in engine compartments


  • 2 x manual in engine compartments





Electrical & Power Management

• Boat Voltage: 220V | 60 Hz


• House Batteries: 8 x 270 Ah Battleborn Lithium Ion Batteries (New October 2022) 1,080 24V Ah


• Engine/Generator Start Batteries: 3 x 12V (New August 2023)


• Generator: Cummins Onan 17.5 Kw at 50 Hz / 21.5Kw at 60 Hz


• Generator Hours: 7,706


• New Jabsco Raw Water Lift Pump: Yes


• Maintenance: Oil & Oil Filter replaced every 150 Hours


• Shorepower: 2 x 50amp shorepower


• Engine Alternators: 2 x Standard Hitachi 12V 80 amp / Upgraded 24V high output


• Battery Chargers:



  • 1 Victron Energy Centaur 12V 30 amp output – serves all three start batteries


  • 2 x Victron Energy SkyLLA-TG 24V 100 amp output (each)






• Inverters: 1 x for refrigerator


• BMV V-6005 Victron Energy Battery Monitor: Yes


• Eplex Electronic Switching System: Significantly upgraded in July 2025, new model, new cables, new clock, etc.

Electronics & Navigation

• All New: June 2024


• Garmin Equipment:



  • AIS800


  • GHC50


  • GND10


  • GNX Wind


  • GPSMAP 8616


  • Reactor 40


  • Virtual N2K Input Handler


  • Garmin VHF radio





Mooring & Anchoring

• Anchor: 110 LBs


• Anchor Chain: 350 / 13mm chain


• Windlass: Lewmar V6 24VDC vertical drum/gypsy anchor windlass with remote control at the flybridge and at the anchor locker


• Spare Anchor: Rocna


• Spare Anchor Rode: Bridle


• Mooring Lines: 8 x dock lines


• Fenders: 8

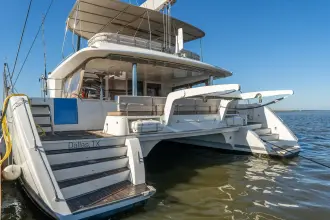

Exterior Walkthrough

• Cockpit: Full zip in eisenglass enclosure in good condition

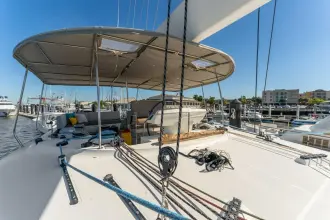

• Flybridge: Full bimini


• Cushions: Brand new Sunbrella exterior cushions


• Exterior Lighting: All new

Interior Walkthrough

• General:



  • New 24V Fans


  • All new interior lighting


  • All new lamp shades


  • Air Conditioning: Marine Air Systems chilled water air conditioning system


  • 3 x 24,000 BTU compressors and 12,000 BTU air-handler in all cabins/salon






• Galley:



  • Siemens Dishwasher


  • Isotherm 24V refrigerator (New June 2025)


  • Isotherm 24V freezer (New June 2025)


  • 220V refrigerator downstairs starboard hull


  • Wine storage starboard hull





Safety Equipment

• EPIRB: 2 x McMurdo Smartfind G8 AIS EPIRB


• Liferaft: Viking 8 person liferaft – serviced November 2022


• Fire Extinguishers: Half dozen


• Inflatable Harnesses: 4 x with Personal EPIRBs

Tender

• Tender: 13 Caribe center console


• Outboard: 2022 Yamaha 4 stroke 40 horsepower
