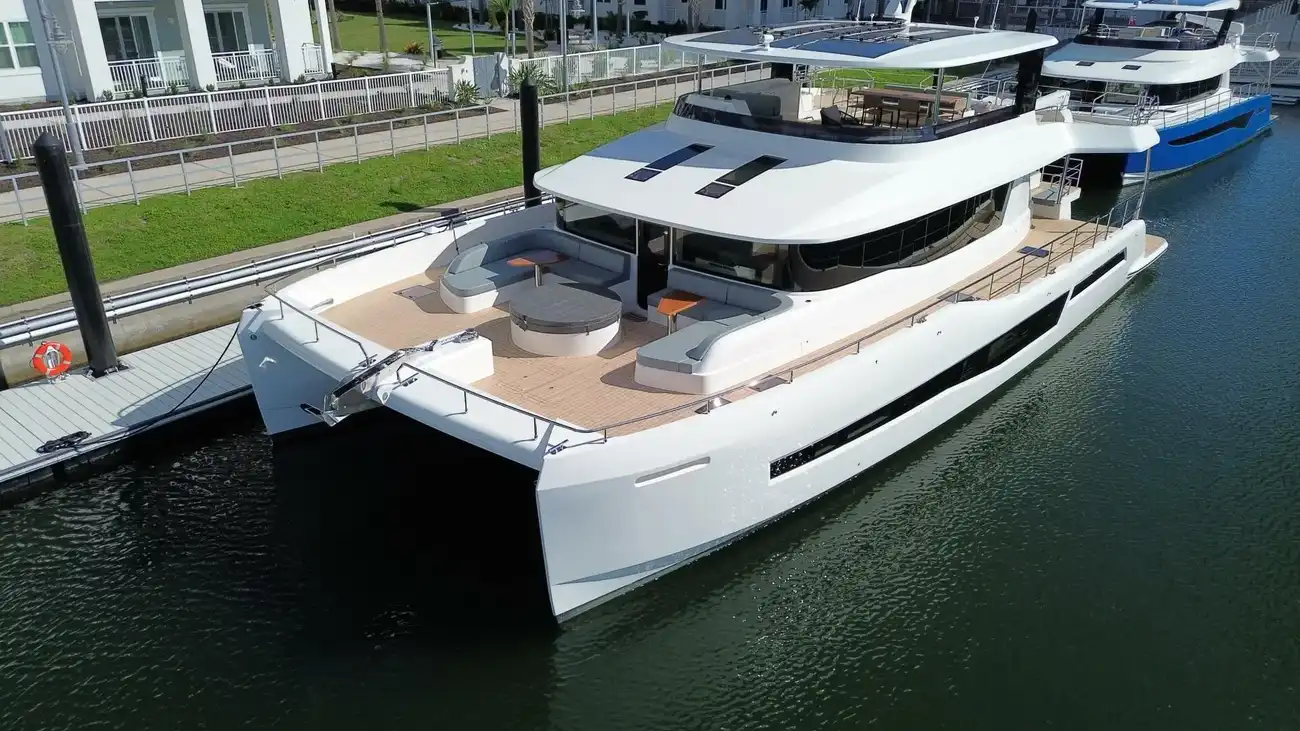

Granocean W 72 Paso Doble

Boat Description

The unique flybridge wings provide incredible open space with room for a large tender and crane, a wet bar, helm station and ample lounging areas. The Main Deck is all one level, with a fwd door to the saloon leading to a bow cockpit area.

This hull is presented with a Master Suite, 2 guest cabins, provision for 3 crew with galley down.

The W-72 offers contemporary styling, twinned with robust Engineering by world renowned Gurit SP to ISO category A standards. All structural components are resin infused with vinlyester resin for superior strength and anti-osmosis properties.

Hull and deck structures with advanced closed cell foam cored composite panels and carbon reinforcements in key areas to achieve a light weight structure.

NB: Pictures are of Sistership hull 002

Accommodations

Cockpit

• Covered aft deck with overhead lights
• Large C-shaped flip-able backrest settee with Soffkin Kalmin marine vinyl cushions
• Two (2) Teak cockpit dining tables
• L-shaped settee with Soffkin Kalmin marine vinyl cushions
• Teak coffee table
• Storage under seating
• Watertight engine access hatches
• Custom shoe/sandal storage locker
• Storage lockers on deck
• Teak grate at entry to salon
• Day Head below molded staircase
• Molded Staircase with teak steps to flybridge
• LED Courtesy floor lighting throughout
• LED Flood lights for transom platform
• Vimar water-proof sockets
• Two (2) waterproof Fusion FR6021 6 inch speakers connected to inside helm stereo

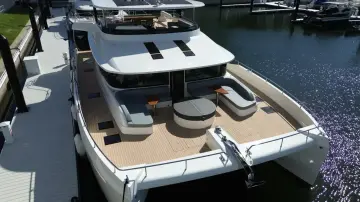

Foredeck

• Weathertight door built to CE Area IIA to bow lounge
• Two (2) large sunbathing L shape settee with Soffkin Kalmin marine vinyl cushions
• Cup holders integrated into settee
• Anchor chain locker
• Insulated icebox locker under settee
• Two large fender lockers under deck
• Two (2) waterproof Fusion FR6021 6-inch speakers connected to inside helm stereo
• Vimar water-proof sockets
• Upgrade to SPA

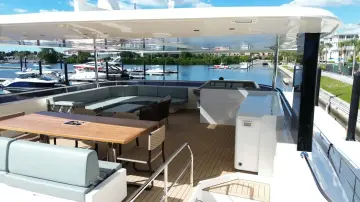

Flybridge

• Molded stairs with teak steps to flybridge with SS handrail
• Hatch cover over staircase opening
• Hard top covered flybridge with LED overhead lights
• Wet bar including Corian top with built-in sink, tap
• Large C-shaped settee with Soffkin Kalmin marine vinyl cushion and storage underneath
• Two (2) Teak dining tables
• Helm with double seats complete with steering, throttle, VHF and chart-plotter
• Acrylic windshield
• Sun lounges with Soffkin Kalmin marine vinyl cushions next to helm
• Large storage locker
• Vimar water-proof sockets
• LED Courtesy floor lighting throughout
• Instrument mast on hard top
• Two (2) waterproof Fusion DR6021 6 inch speakers connected to inside helm stereo with separate volume controller
• Extendable Steelhead hydraulic Crane capacity 680 KG with 3.7m reach upgrade
• Marinedeck 2000 decking upgrade

General Interior Finishes

• General interior finishing in soft vinyl leather and wooden veneer with satin finish
• Furniture is a combination of solid wood and veneer with satin finish
• Overhead finished in soft Soffkin vinyl leather panels
• Composite non porous membrane flooring with non-slip stripes for staircases
• Cedar wood for all hanging closet’s backing panel
• Upgrade: Removable custom shaped carpet in cabin areas
• Upgrade: Granite countertops with honeycomb backing in galley and heads
• High quality entrance chrome door lock and stainless steel cabinet door locks to shipyard's standard selections
• High quality Lamp interior hardware
• DC LED ceiling and courtesy lighting throughout. Lighting fixtures to shipyard's standard selections
• Roll down shades for all cabins and heads

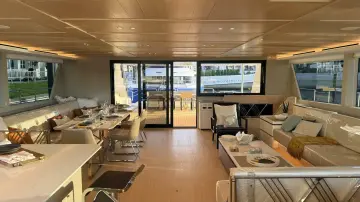

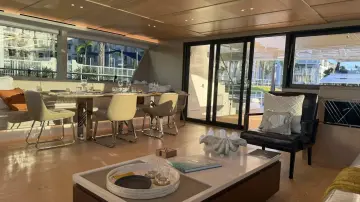

Salon

• Panoramic view through large laminated fixed windows
• Wide open triple stainless steel sliding salon doors
• Roca windscreen wipers with spray wash, on/off/3 speeds function
• Large C-shaped settee on stbd side
• Two (2) coffee tables on port side
• Dining tables on stbd side
• Two (2) observation settee facing forward
• 50 inch Samsung salon flip down or pop up TV subjected to final GA
• Cabins access companionways with SS handrails
• U-shaped Galley adjacent to cockpit on aft stbd side
• Corian countertops with storage
• Double Kohler stainless steel sinks
• Siemens full height fridge and freezer unit
• Siemens three burner electric convection cooktop
• Siemens Extraction hood
• Siemens Oven and microwave combination under counter
• Fusion RA770 player entertainment system with two FR6021 6 inch Fusion speakers
• Upgrade: Indoor helm with double seats complete with steering, throttle, VHF and chart-plotter) 3 x additional Garmin 12" chart plotters. 4Kw radar array Garmin. AIS Garmin. CCTV camera for fly, cockpit and engine room.
• Upgraded appliances: 3 x external undercounter fridges, icemaker, Siemens washer with separate dryer, dishwasher, microwave, cooktop, coffeemaker, wine cellar x 23 bottles, combination lock safe.

Lower Deck

Standard Layout upgraded to:

Portside

• VIP suite forward
• Crew Cabin with head, crew galley with built in 36" fridge, dishwasher and laundry with stacked washer/ dryer

Starboard Side

• Master Suite aft
• VIP suite
• One ensuite head and one shared head

All Staterooms

• Queen size berth (153cm x204cm)
• Single or Hi-low bunks for crew cabin
• Large closet with drawers and closed shelving
• Vanity desk with seat and flip up mirror
• Wall/reading LED lamps on both side of headboards
• Pull-down blinds over portlights

All Heads & Showers

• Corian counter tops with Kohler ceramics sinks (Double sinks for master suite, choice of top mount or undermount sinks)
• Storage unit below counter
• Separate shower compartment
• Standard size Tecma toilets with electric freshwater flushed
• Kohler faucet and shower unit
• Chrome towel bars and toilet paper holders
• Exhaust fan in all heads
• Teak grates in all shower stalls
• Mirrors above countertop

Engines & Mechanicals

Engine & Equipment

• Two Cummins QSB 6.7 550hp 3300rpm inboard diesel engines with instrument panels & throttle at flybridge helm
• Two (2) Hungshen four blade bronze propellers
• Aqua 17 high tensile direct transmission shafts
• Hydrive electrical hydraulic Steering system, compatible with autopilot system
• Stainless steel emergency tillers
• Fiberglass rudders with stainless steel shaft & reinforcement
• Manship engine compartment ventilation natural intake of air with mechanical extraction of air
• Engine room with sound insulation materials
• Engine alarm system for low oil pressure and high-water temperature
• Cruisair air-conditioning system total 88,000 BTU (Salon with 48,000 BTU in total, lower deck with 20,000 BTU in total for each hull)
• Upgrade to 2 Lewmar 15HP electric bow thrusters

Plumbing

• Two (2) integral FRP fuel tanks total volume 5000L with electrical gauge
• Racor 500 series fuel filter/water separators for each engine
• Diesel emergency shut off valve
• Jabsco fuel transfer pumps between fuel tanks
• Two (2) integral FRP water tanks total 1000L with electrical gauge
• Two (2) 24V Electric Jabsco freshwater pump and pressure accumulator
• Freshwater crossover back up system with control valves
• Two (2) 80L Quick water heater
• Two 72L PVC holding tanks
• All black water discharge overboard directly from holding tank or pump-out from deck
• Shower drain to greywater sump pump
• Six (6) RULE#2000 electric bilge pumps with separate flow switches
• One manual Jabsco bilge pump for emergency in each hull
• Upgrade: Two Reverso 80GPH Fuel polishing system with fuel conditioner
• Upgrade: Schenker Watermaker 100L/h with commercial filters

Electrical

• 24V/230V or 24V/110V electrical system
• Two (2) Kohler 12KW/50HZ/1PH with Decision Maker 3500 Paralleling system)
• Wiring - marine cables approved by Lloyds and ABS
• Czone NMEA 2000 network backbone system ready for connection to 3rd party navigation engine systems and other NMEA 2000 network equipment.
• Batteries - house and engine starting
• House: 6 deep cycle total 24V 1000AH
• Two extra 24V 200AH batteries for electric windlass
• Engine Start: 2 set 24V ? 200 AH lead acid batteries
• Generator start: 12V 120AH battery
• Separate Victron chargers for starting batteries
• Victron Quattro 24V/5000W/120A battery inverter/charger Combo
• LED Lighting throughout 24V DC
• 63 amp single phase shore power inlet with galvanic isolator
• Power circuits protected by circuit fuse and breakers
• Main AC/DC electrical distribution panels
• 24V monitoring alarm panel
• Electrical gauge with indicator at chart table
• Electrical Vimar outlets located throughout including engine room
• Electrolysis bonding system via copper strap
• Upgrade: Four (4) Aqualuma underwater lights two at each stern
• Upgrade to Flexible solar panels on hard top (one is 100W each) x 37
• Extra Lifeline D8 250Ah battery for Solar panel

Navigation & Electronics

• One (1) 4-1/2" Ritchie compass
• One set of Hella navigation lights include head, stern, port, starboard & anchor
• 12? Garmin navigation chart plotter at main helm (Option: upgrade size to 16? and/or dual plotters)
• Garmin 20nm-36nm Radome upgraded to 42nm 4Kw Garmin Radar array
• Garmin depth/speed/fishfinder combo transducer
• Garmin VHF
• Garmin Autopilot
• Garmin Wind Meter
• Two (2) rudder indicators
• Roca Wiper system
• Engine console with all gauges
• Jabsco remote control searchlight
• Marco single stainless steel ship horn
• Upgrade: Garmin AIS
• Upgrade: Garmin CCTV cameras in engine rooms / cockpit / flybridge)
• Indoor secondary helm station as per standard flybridge configuration
• Upgrade to Yacht Master wireless docking control system

Safety

• Automatic Seafire fire extinguishers in engine room
• Hardwire Smoke/heat detectors
• High water alarm in all water-tight bilge area
• Engine & generator with high water temp/ low oil pressure alarm
• Fuel shut-off valve fitted with additional control outside of engine space
• Portable CE approved 2kg fire extinguishers throughout
• Twelve (12) ISO Life Jackets

Optional Upgraded Equipment

Upgrades Summary to standard specification:

• MarineDeck 2000 decking - cockpit including transom platform
• MarineDeck 2000 decking - side decks & foredecks
• MarineDeck 2000 decking - upper deck (open flybridge version)
• Boat name in custom designed 316L Stainless Steel (back lighted)
• Two Cummins 550HP Diesel Engines (Upgrade)
• Steelhead flybridge extendable hydraulic crane, 680kg, 3.7m reach
• Change from 20.5kw to two 12.5 kw 240V Kohler gensets in parallel (14kw at 110V)
• 2 Lewmar 15HP electric bow thrusters
• Reverso fuel polishing system 80GPH with fuel conditioner x2
• Flexible solar panels on hard top (one is 100W each) x 37
• Extra Lifeline D8 250Ah battery for Solar panel
• Yacht Master wireless docking control system
• Schenker Watermaker 100L/h with commercial filters DC power
• Rope cutter
• Anchor Bridle Pads
• Indoor secondary helm station as per standard flybridge configuration
• Additional Garmin chart plotter (12") X 3
• 4 KW 72nm Garmin Radar array
• AIS - GARMIN or VESPERMARINE or Similar
• CCTV Camera - per location - ( Eng Room, Cockpit, Flybridge)
• SPA on foredeck
• Kenyon electric BBQ grille
• Siemens separate washing machine + separate dryer
• Siemens dishwasher
• Vitrifrigo Ice maker (galley / cockpit / flybridge)
• Wine cellar 23 bottles capacity
• Combination lock safe
• Granite tops with honeycomb backing (galley and heads)
• Fixed platform aft of cockpit
• Extendable Steelhead hydraulic Crane capacity 680 KG with 3.7m reach upgrade
• Exterior Undercounter fridge X 3
• Icemaker
• Microwave
• Cooktop Oven
• Dishwasher
• Coffeemaker
• Revision to portside hull- additional cabinetry / additional bathroom / Guest Cabin and Galley furnishings. Portside forward hull as storage area. Crew Cabin relocated to Starboard hull
• Reinstate stbd foredeck settee
• Change of fuel access tank hatch location
• Engineering / Gurit - Patch and reopen portside bulkheads, plus deck engineering re deck hatches alteration
• Electrical double up / down table pedestal at cockpit
• Four Aqualuma underwater lights Series 12

Structure & MSE

Structure

• Hull lamination according to EN ISOstructure standard
• Built in accordance with HPI Verification services
• Composite fiberglass infused hull & deck
• Hull, deck & superstructure built of light weight fiberglass composite with closed cell PVC foam/honeycomb as core material
• Interior structural components all properly bonded to hull & deck

Hull & Deck Exterior General

• White gel coat on all superstructure and hull (Option: coloured gelcoat / painted hull)
• International Interlux antifouling paint
• Main deck non-skid deck
• Electric windlass Lewmar V6 24V with chain counter & footswitches
• One 80kg stainless steel Delta anchor fitting at bow with chain stopper
• 100m 13mm din 766 galvanized anchor chain
• 316 stainless steel safety stainless steel handrails throughout
• Anchor bridle with shackle & pad eyes fitted
• Eight (8) heavy duty 12? 316L stainless steel cleats
• Two (2) pop-up 6? 316L stainless steel cleats on transom platform
• One stainless steel Sampson post at bow
• One stainless steel two ring at transom
• Eight (8) fender locks
• Double layer tinted safety glass windows
• Two (2) Lewmar large low profile deck hatch
• Fixed large portlights with safety glass fitted
• Six (6) Lewmar flush openable portlights
• Two (2) Vetus escape hatch underside
• Wide opening triple stainless steel sliding doors to salon
• Stainless steel rub rail along transom
• Freshwater deck wash-down
• Dual freshwater & seawater anchor chain wash down
• Two (2) Whale transom shower with hot/cold water
• Stainless steel folding swimming ladder
• Two zinc anodes on transom for bonding system
• Two (2) stainless steel deck water fillers
• Two (2) stainless steel deck fuel fillers
• Two (2) stainless steel deck waste pump outs
• Stainless steel flag post on flybridge
• 316 stainless steel thru hull fittings above waterline
• Bronze through-hull fittings below waterline
• Boat name in custom designed 316L stainless steel
• Soffkin Marine vinyl exterior upholstery
• Mooring kit includes six (6) fenders and five (5) 24mm Moorings lines
