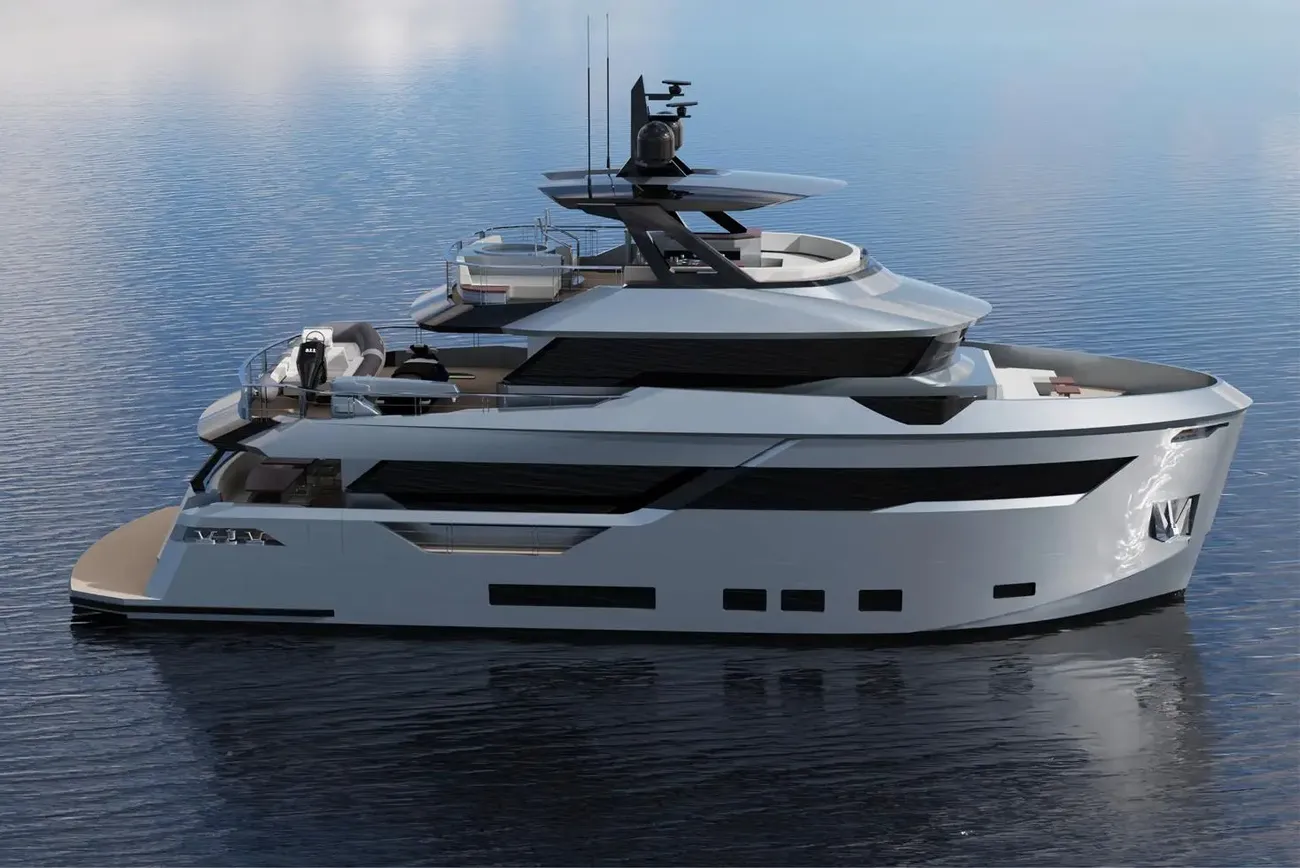

AES Yacht 85

• Cruising Speed: 8 kn


• Maximum Speed: 11 kn


• Beam: 26' 2''


• Hull Material: Steel


• Max Draft: 8' 2''


• Fuel Tank: 1 x 9247|gallon


• Fresh Water: 1 x 924|gallon


• Holding: 1 x 951|gallon


• Cabins: 4


• Heads: 5

Builder: AES Yachts
Year: 2027
Exterior Design: AES Yacht
Interior Design: Hot Lab
Naval Architecture & Engineering: AES Yacht/Endaze Engineering
Length Overall: 26.0 m/85 ft
Length at Waterline: 23.95 m/78.5 ft
Breadth Max: 8.0 m/26.2 ft
Draft: 2.5 m/8.2 ft
Gross Tonnage: 235 gt
Hull Material: Steel
Superstructure Material: Aluminum
Class: RINA, CE Category A, Module G
Flag: Maltese
Engines: (2) Cummins QSM 11 455 hp
Max Speed: 11 knots
Cruising Speed: 8 knots
Range at Cruising Speed: 6,000 nm
Generators: (2) Kohler 35 kW @1,500 rpm 50 Hz, 400V
Fuel Capacity: 35,000 liters/9,247 gallons
Fresh Water Capacity: 3,500 liters/924 gallons
Sewage Tank Capacity: 3,600 liters/951 gallons
Staterooms: 4; sleeps 8 guests
Crew Cabins: 2; sleeps 4 crew

• ZF Gearbox


• F51 Duplex stainless steel shaft


• (4) Control stations


• Aluminum bronze propeller


• Bow Thruster: (1) Sleipner SH550, hydraulic


• Stern Thruster: (1) Sleipner SH550, hydraulic


• Data hydraulic steering system


• Stabilizers: Sleipner, zero speed, vector fin kit 1.95 sqm


• Danfoss PTO pumps


• Water Makers: 460 liters(121 gallons)/hour total, duplex, Idromar


• Idromar fresh water systems


• Air Conditioning: Mediterranean Climate - Webasto


• Engine Room Inlet & Outlet Fans: (2) Gianneschi


• Fuel Filtration: (1) Alfa Laval


• Sewage Treatment System: Hamann, HL compact 3,000 liters (792 gallons)/day


• Tecma toilet system


• Gianneschi pumps


• (1) Alfa Laval fuel separator and filters


• (1) Atlas Copco compressor


• Kahlenberg air horn

• Electrical Supplies: 230/400V - 50hz


• Batteries Starter & Service: Mastervolt or Victron


• Service Generator: (2) Kohler 35 kW with Sound Encloser


• Shore Power: (1) Glendenning Cable Master


• AV & IT Automation System: KNX, ABB

• (2) Data hydraulic anchor winches (windlasses)


• (2) Data hydraulic mooring winches (capstans)


• (2) Data hydraulic anchor & anchor chain


• Tender Crane: (1) Opacmare - Loading capacity 1,000 kg


• Transformer: (1) Opacmare 5 steps - Lifting capacity 420 kg


• Passarelle: (1) Opacmare - Length 5.040 mm


• Electrical Sliding Doors: (2) Besenzoni or Makro Yachts


• (8) Underwater lights or Oceanled


• Awl Grip top coat (topsides & superstucture)

• Sliding Watertight Doors: Winel or equal


• Fire Fighting: Fire Pro FP 1200


• Fire Detection & Alarm: Tyco T2000 or Consilium


• Security (CCTV): Samsung

• Furuno navigation equipment


• Navigation lights


• (1) Intellian TV antennas


• Network IT system


• 4G/WiFi system
