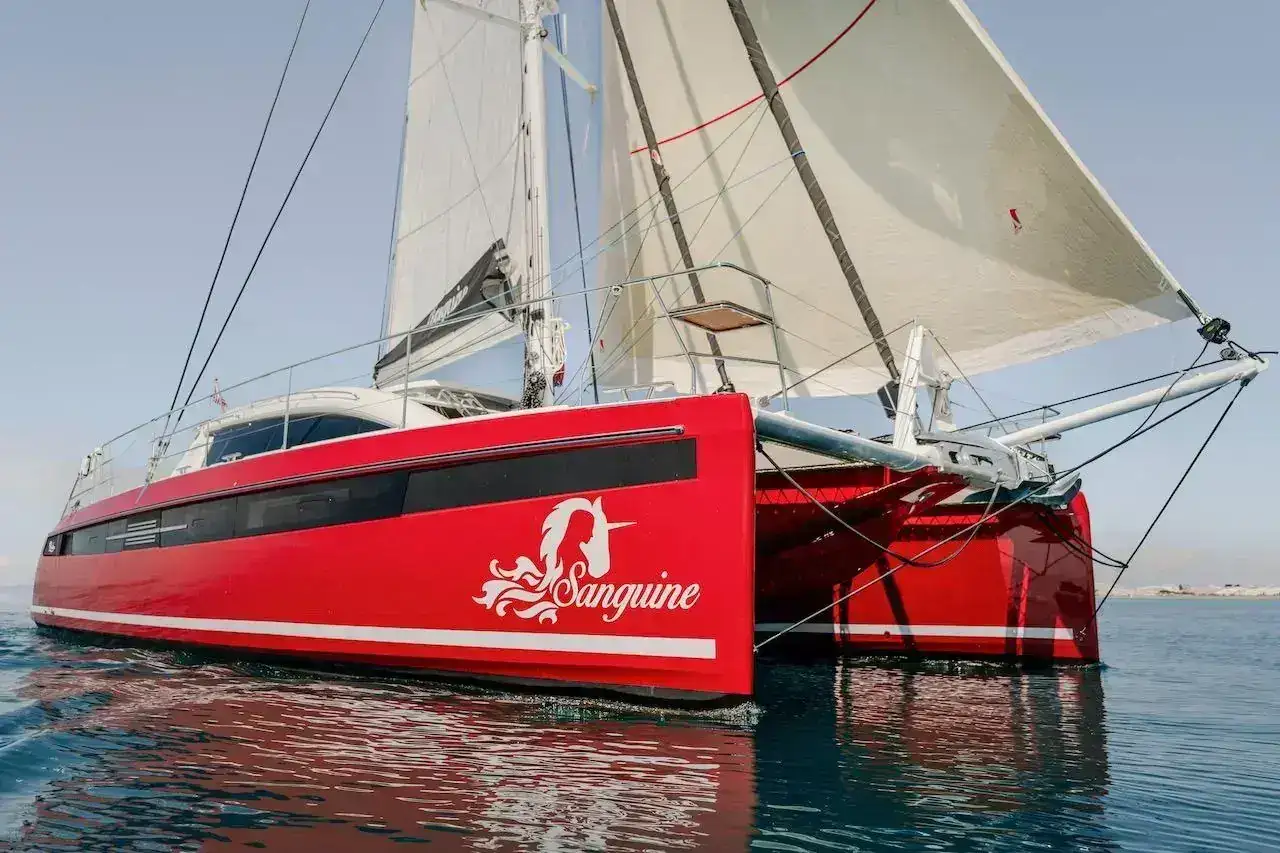

Privilege Signature 510

Available On-Order from the Privilege Factory in Les Sables-d'Olonne, France

Experience Luxury in Motion with the 2026 Privilege Signature 510

All Weather Protection

All-weather protection is fundamental to extended cruising. The Privilege Signature 510 helm features a hard dodger and full enclosure. The fact that the 510 can be sailed without leaving the helm is a great benefit while sailing in cold weather. The large cockpit is protected by a hardtop that extends right back to the aft platform. Once the full enclosure is lowered, a large, comfortable weatherproof living area is created that connects beautifully to the salon.

Sail Management

Short-handed sailing is the norm for a liveaboard cruiser. That's why the Privilege Signature 510 is designed with an intelligent sail management system that allows you to trim and adjust your sails without ever leaving the helm. Single line reefing, main halyard, main sheet, genoa sheets, and downhaul are led to two electric winches right at the helm. The genoa is also easily controlled with the standard electric furling system.

Storage Capacity

Storage capacity is essential for extended time aboard. A dedicated wardrobe in the master suite, a floor to ceiling pantry, and large capacity fridge and freezer in addition to a well-appointed galley with plenty of cupboards and counter space are just a start. Also as important are spaces to store wet or bulky items such as fenders and additional sails. There's also a dedicated location for an easy to deploy life raft in the cockpit that doesn't interfere with the flow of movement.

A Sanctuary

A long passage can make even the largest catamaran feel small. The master suite aboard the Privilege provides that space for a private sanctuary. The large island bed, great ventilation, and natural light create an area to retreat to that will enhance your life aboard. As with all Privilege Catamarans, you can bring your design ideas to this important space to customize it to the way you envision living in it.

Secure Tender While Offshore

With the popularity of heavier, centre console tenders, the ability to easily launch and raise your dinghy becomes critical to the long distance sailor. The electrical pendular system on the Privilege 510 Signature is designed to be operated by one person. The other important benefit is the security of resting the dinghy directly on the vessel's aft deck. No heavy dinghy is left hanging precariously above the water during a passage.

Dual Anchors and Second Windlass

Aboard a 50, 58 and larger catamarans, a functional windlass is a necessity. For the passagemaker having an additional windlass is as important as the second anchor itself. All Privilege Catamarans have large and deep anchor lockers and are designed to accommodate a second windlass.

Reliable and Accessible Systems

All Privilege Catamarans feature full engine rooms and equipment intelligently located throughout the boat. Maintenance is routine for the liveaboard and easy access to all systems is essential.

Livable Environment

Passive ventilation while at anchor and silent A/C when needed. With 7 overhead hatches in the master suite and 5 in the salon, air flow while at anchor is ideal. Privilege Catamarans are equipped with a central chiller system so you'll enjoy interior comfort with far less noise, even in extreme heat.

Power When it Matters

The Privilege Signature 510 is available with twin 80 hp Yanmar engines with shaft drives. All cruisers understand that there are times when their sailboat needs to be a good powerboat. While docking in a cross wind or motoring against a strong current, nothing is more stressful than being under powered.

Seaworthy

Privilege catamarans are designed to protect you. Almost everything on this list is also a safety issue. Weather protection, a secure tender, the power needed in adverse situations, a backup anchor, and the ability to lower a mainsail no matter what are all things that make a boat safer.

Structure

Hull

Hulls infused with closed cells PVC foam core

Isophthalic gelcoat – color: Signal White, RAL 9003

1st layer in vinylester resin

Polyester resin

Monolithic areas and plywood/aluminum reinforcements

Watertight compartments at bow and transom

Structural keels

Bootline sticker

Bulkheads

Bulkheads infused with closed cells PVC foam core

Structural bulkheads laminated to hull and deck

Deck

Deck infused with closed cells PVC foam core

Isophthalic gelcoat color: Signal White, RAL 9003

1st layer in vinylester resin

Polyester resin

Monolithic areas and plywood/aluminium reinforcements

Deck laminated to hull

Raised helm station on port side with double seat and 2 lockers for halyards

Systems

Propulsion

2 soundproof and heat insulated engine compartments with ventilation fans and LED lights

2 engine room deck hatches

2 x 80 hp Yanmar engines

2 single fuel filters / water separators

Electric throttles and engine displays at helm station

2 inverters ZF25A-E

Shaft drive

2 x 3 blade folding propellers 20 inches

Shaft-mounted circular rope cutters

Generator

Generator Onan Cummins* low RPM, 7KVA, 230 VAC, 50HZ, with soundproof box

Water exhaust separator

Autostart system

Electrics

24Vdc network

2 Shore power outlet 230VAC, 50Hz/60Hz, 32A with galvanic isolator

2 Shore cables

230VAC, 50Hz circuit with 2 outlets in each cabin, 4 in the master suite, 4 in the galley, 2 in the saloon, 2 at chart table, 1 in each head, 1 watertight in each engine room, 1 watertight in each bow

10 touch screen AC/DC supervision and data recording system (gauges and pumps, lighting, service switches, alarms)

Set of control boxes with breakers and control relays

2 Mastervolt LITHIUM-ION service batteries 24Vdc, 230Ah, 6000Wh

1 Mastervolt ChargeMaster 100A

3 engine and generator gel batteries 12VDC, 75Ah

4 Mac+ DC/DC 12/24V battery chargers from engine batteries to service batteries

1 inverter AC Master 4000W, 230 VAC

Twin USB charging A+C: 1 in each cabin, 2 in the master suite, 1 in the saloon and 1 at chart table

1 induction charger at the helm station

1 waterproof twin USB charging A+C at helm station

Lighting

LED downlights arranged throughout the boat, incl. white and red in saloon and cockpit, with dimmers (warm white less than 3100 Kelvin)

LED reading lights arranged throughout the cabins (warm white less than 3100 Kelvin)

1 flexible reading light at chart table (red and white)

2 LED lights for transom steps

Interior white courtesy lights in saloon

6 exterior courtesy lights in cockpit (warm white)

White lighting in forward peaks

Navigation Instruments

2 Raymarine Axiom 2 pro 16 displays: 1 at chart table & 1 at helm station

2 i70 at helm station with DST transducer (Depth/Speed/Temperature), anemometer and wind angle indicator

Quantum 2 Doppler Radar (Q24D)

GPS Receiver RS150

1 AIS 700 with VHF antenna splitter

1 Ray90 VHF wired handset at chart table with speaker

1 wireless handset Ray90 at helm station with speaker

Echomax passive radar reflector

Magnetic compass, northern hemisphere

1 Raymarine Evolution EV-1 Autopilot including ACU400 and 1 hydraulic pump RV3

1 p70S at helm station

Pack Yacht Devices with engines interface

Entertainment

TV & Hi-fi in saloon incl.:

1 LED Smart TV 43 on swivelling support

1 multimedia hard drive

1 Amplifier 500W

1 Fusion Apollo RA770

1 remote ARX70

2 In-Ceiling speakers 6 120W

1 subwoofer 600W

TV & Hi-fi in master suite incl.:

1 LED Smart TV 43 integrated in a library on main bulkhead

1 Fusion Apollo RA770

1 remote ARX70 in the shower

2 Speakers 6 120W

2 Speakers 4 120W

TV & Hi-fi in guest cabins incl.:

Prewiring (Coax + RJ45 + 230v)

Hi-fi in cockpit incl.:

1 Amplifier 500W

2 speakers 7.7, 280W

1 subwoofer 600W

1 remote ARX70

Communication

Router Wifi/4G/5G with external antennas on the mast

Water, Fuel & Gas System

2 stainless steel fresh water tanks 2 x 300L

2-way transfer pump for fresh water

2 x 40 L hot water boiler 230VAC / engine

Pressurized water system

Fresh water shore, incl. pressure reducing

Sea and fresh water washing outlets for cockpit and anchor chain

2 manual bilge pumps with 3-way-valve

4 electric bilge pumps with visual and audible alarms

Electric shower sump pumps

2 polypropylene black water tanks, 2 x 106 L

Mixing taps for heads and galley

Thermostatic tap for showers

Electric toilets with freshwater flush

Warm/cold water deck shower on port transom

2 x 400 L aluminum fuel tanks

2-way transfer pump for fuel

Rigging

Standing Rigging

White lacquered aluminum 21.21m high mast with:

2 sets of spreaders with leather protections

Mainsail track with sliders on Antal ball bearing guides

1 Antal black aluminum XT48 manual winch on starboard mast side

4 foldable steps to gooseneck

1 footrest at gooseneck

2 foldable steps at masthead

Tricolor LED navigation lights at masthead (steaming, anchor, red and green)

Deck light in front of the mast

2 white LED lights under first set of spreaders

Wind indicator at masthead

White lacquered aluminum 7.09m long canoe boom with:

Lazy bag

Sheaves for reefing lines

Mainsail traveller on a track

White lacquered aluminum welded crossbeam with seagull striker

Stainless steel 1×19 wire incl. forestay, inner forestay, cap shrouds, lower shrouds

and 4 diamonds

Running Rigging

Mainsail: Dyneema core halyard, sheet

Genoa: Dyneema core halyard, sheets and furling line

Staysail: Dyneema core halyard, sheets and furling line

Dyneema core reefing lines, lazy jacks, and topping lift

Sails

Mainsail: OneSails Hydranet squaretop 88 m2

Genoa: OneSails Hydranet 57 m2 with UV leech guard on manual furler

Staysail: OneSails Hydranet 20 m2 with UV leech guard on manual furler

Deck Hardware

1 electric 2 speeds black aluminum Antal XT52 winch at helm station on port side (mainsail halyard, reefing lines and gennaker/code 0/spinnaker furling lines and topping lift)

1 electric 2 speeds black aluminum Antal XT62 winch at helm station on starboard side (genoa and staysail sheets)

1 electric 2 speeds black aluminum Antal XT52 backward winch behind the helm seat (mainsail sheet and traveler control line)

Mainsheet traveller with double ball bearing car and control line

Manual furler for genoa and staysail incl. blocks and padeyes

2 tracks for genoa/staysail incl. cars with pin stop

3 winch handles with holders

Exterior Features

Glazing

Stainless steel patio door to saloon with 3 panels including 2 sliding

Large mineral glass windows on hull and deckhouse

Flush hatches on deck and deckhouse

Mooring – Anchoring

1 electric anchor windlass 2000W with drum, gypsy 10 mm, deck switches and wired remote control with chain counter

Windlass remote control with chain counter at helm station

40kg galvanized Rocna-Anchor

75m galvanized chain grade 70 10 mm

25 m rope

Flip swivel

Anchor chain bridle

8 stainless steel mooring cleats, 500 mm (x4) and 360 mm (x4)

8 anti-chafing stainless steel protections

2 stainless steel mooring cleats, 360 mm, on transoms

1 fairlead cleat on each bow for buoy mooring

Bow anchor roller with 1 stainless steel mooring cleat 500 mm

Anti-chafing stainless steel plate for anchor chain

4 mooring lines

8 fenders with fender socks, 910 x 360 mm, including air compressor

Deck Fittings

2 stainless steel pulpits with exotic wood seats and LED navigation lights

4 stainless steel pushpits, 2 outside and 2 inside transoms

Rigid lateral railing (750mm height) with side openings, incl. solid tube at the top and 2 Dyneema guard lines

2 forward white trampolines (coated polyester mesh)

2 stainless steel handrails on deckhouse

2 stainless steel handrails on coachroof

3 stainless-steel jacklines, 2 on the deck and 1 on the deckhouse

Stairs from forward deck to deckhouse

Fixed stainless steel swimming ladder on portside

Integrated deck shower on port transom

1 sail locker with ladder in each forepeak, accessible through ventilated deck hatches

2 lockers in central pod accessible through ventilated deck hatches

1 anchor locker

6 lockers in cockpit, one of which has a second access to the life raft

1 gas locker in cockpit for a 13kg-propane gas bottle under the helm station

2 lockers under aft cockpit seats

Aft Cockpit

Fixed exotic wood cockpit table (1400 x 1000 mm) with stainless steel central pod

Synthetic teak on cockpit, aft platform and transoms

Stairs in exotic wood from cockpit to helm station with handrail

Stairs from cockpit to side deck

White lacquered aluminium electric davits on aft platform, max. load 100 kg per davit

Aft cockpit with L-shape bench on starboard side and straight benches on port side and aft beam

Helm Station

Double seat with footrest, head support and cup holder Spradling Silvertex (see color chart)

Windscreen in mineral glass with stainless steel frame

1 stainless steel double cup holder

GRP hard-top for helm station with fixed window at the top

Hydraulic steering system

GRP steering wheel, Y-Spoke

Upholstery

Cockpit upholstery including reclining sunbath mattress + cup holder on starboard side in Spradling (see color chart)

2 teak foldable director chairs with raw cotton seats

Name of the boat on lazy bag

Coachroof window mesh covers for UV protection

Interior Features

General

Furniture satin-varnish real wood: walnut, grey oak or white oak

Floorboard laminated wood: Resopal Valley oak 4166-WH, Pablo oak 4168, Silver oak 4228 or Cornwall oak 4084

All worktops in synthetic resin Hi-macs collections (see color chart)

Upholstery Spradling (see color chart)

Lining ceiling and wall Spradling Hitch Iceberg 8962 except:

Saloon centered ceiling: Spradling Silvertex Ice 4004

Deckhouse surround windows: Graphite Grey Lacquer

Lining bed frames, headboards and bedsides: Spradling Vogue Stone 001 or Eucalyptus 004

White solid surfaces: Egger Alpine White W1101 PM

Dark solid surfaces: Egger Graphite Grey U961 PM

Oceanair curtains type in entire boat

Spring frames and mattresses for all beds

Built-in sinks integrated in furniture

Galley Appliances

1 large sink with mixing tap

Gas cooker with 4 burners incl. gas leak detector with alarm and solenoid valve and 13kg bottle of gas

Combi electric oven and microwave

130 L stainless steel fridge with 2 drawers

Built-in dishwasher (9 dishes)

Worktop in synthetic resin Hi-macs collections (see color chart)

Vario corner (swing out corner unit) fitted for storage

1 garbage can under the worktop to the left of the gas cooker

Numerous storages and drawers

Saloon

1 L-shape bench

1 fixed rectangular dining table with 2 stainless steel feet

1 cabinet behind the fixed glass door of the patio with 4 drawers and 1 door

Curtain for patio door in fabrics

Large coachroof with 5 ventilation hatches and extension above cockpit

Navigation Corner

Low chart table with wooden countertop, flap opening storages and a footstool

Electronics, monitoring and entertainment wall panel

Interior Layout Options

Standard – Master + 2 Guests

Option – Master + 3 Guests

Option – 4 Double Cabin Layout

*Inquire for more information regarding specific layout options*

Safety & Delivery

2 stainless steel emergency tillers

Engine room, fire suppression with remote

Personalized handover (3 days)

Presentation and explanation of the boat (fluids, electricity, electronics, etc….)

Sea trail and boat handling coaching for 2 days

Declaration of Conformity according to European Directive 2013/53/UE

5 years structural guarantee on hull, deck and bulkheads

Owners manual

Epoxy primer and hard matrix antifouling
