Beschreibung

Accommodations:

Four double cabins with a private shower room equipped with a shower of a large sink and an electric toilet on holding tanks 120L

Starboard hull

One aft cabin double bed 160 x 200 with access from one sides, with high density mattress on a slatted base, large wardrobe and shelves, four drawers under the bed

One desk area

One forward cabin double bed 150 x 200 , with high density mattress on a slatted base, large wardrobe and shelves, four drawers under the bed

One desk area

One forward crew cabin with access by deck hatch , one double bed + one single bed

Wardrobe and storage

Port hull

One aft cabin double bed 160 x 200 with access from one sides, with high density mattress on a slatted base, large wardrobe and shelves, four drawers under the bed

One desk area

One forward cabin double bed 150 x 200 with access from both sides, with high density mattress on a slatted base, large wardrobe and shelves, four drawers under the bed

One desk area

One forward crew cabin with access by deck hatch, one double bed with shower, washbasin and marine toilet

Wardrobe and storage

One washing machine - dryer 10kg

One dryer 7kg 220V exterior starboard cockpit

Air conditioning in the saloon and cabins: individual interchangeable air conditioning system U Flex Central chilled water

7000 BTU per cabin including crew

Two compactBTU systems

Hydrotechnique water maker 280l/h 380V

Fresh water tanks 2 x 1200 liters aluminum with gauge at the charts table

Hot water circuit with a water heater 50 L on the galley side and another 40 l located in the corners on starboard

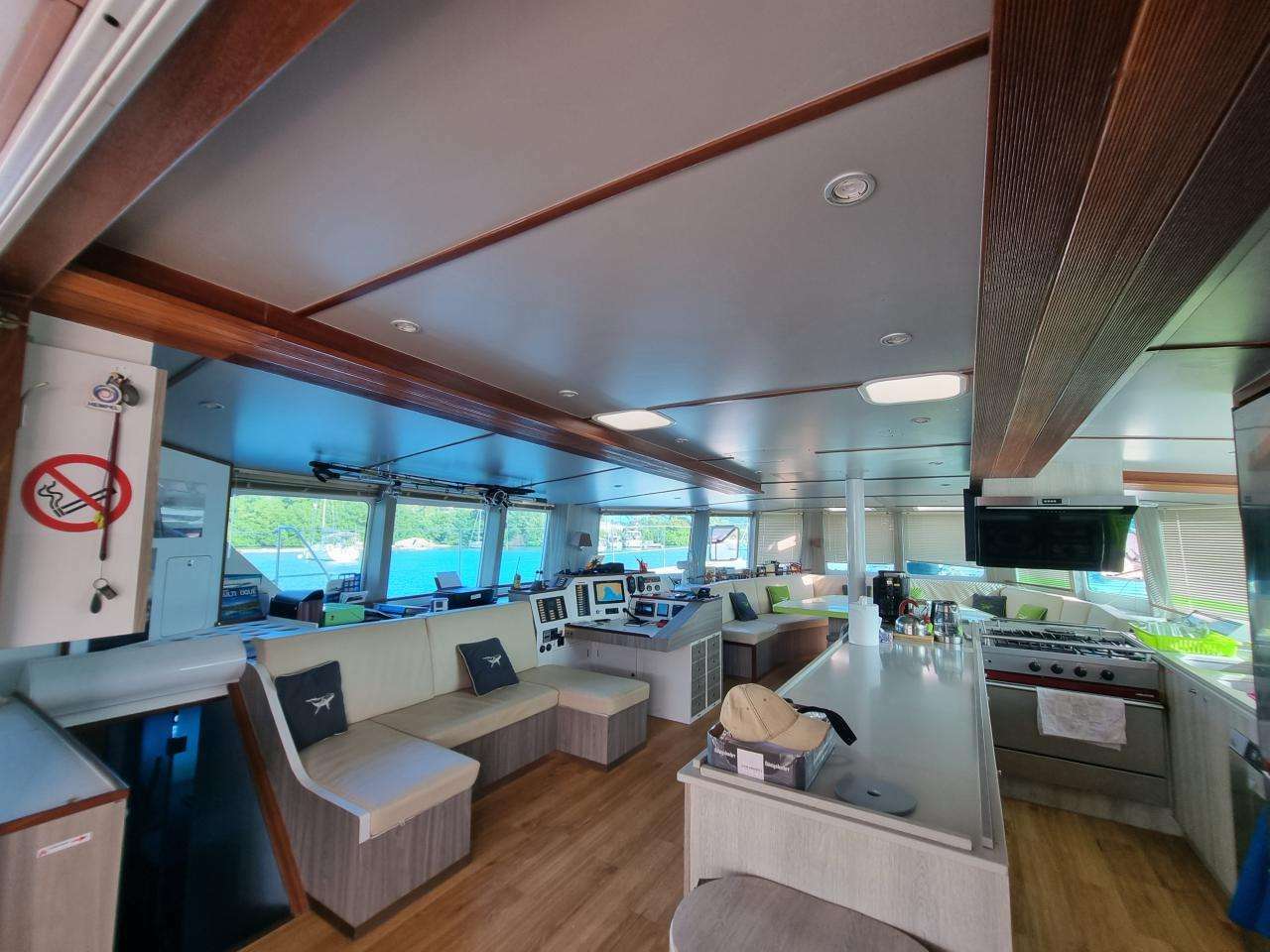

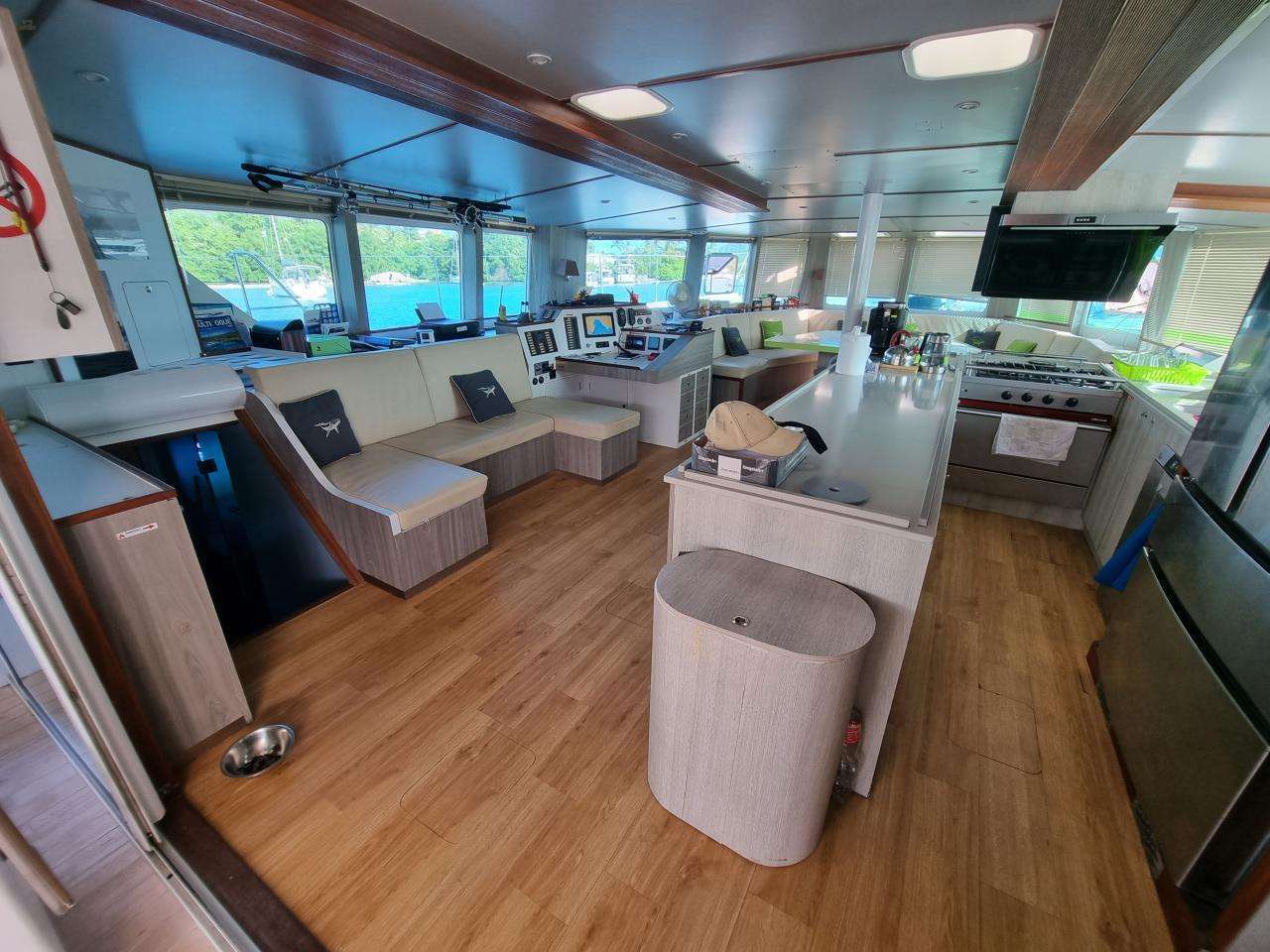

Galley U shape

Galley:

Direct access to the aft cockpit via sliding bay and openings in the glazing

Double stainless steel sink on worktop with hot / cold water mixer

Synthetic stone worktop

Storage cupboards and drawers

Professional 3 burners hobs  gas with oven

Extractor hood outlet external ventilation side face superstructure

One fridge/freezer Haier 486L positive cold and 266L negative cold

Additional capacity for fridge (90L) or freezer (90L) in the cockpit

Dishwasher

Sails and rigging:

Full batten main sail Dacron double ply 3 reefs 120m² with battened lazy bag

Dacron double ply furling genoa 130m²

Sparcraft single-strand stainless steel rigging

Profurl NC530 genoa electric system

Staysail with shackles

Maréchal mast Z 1602 aluminum 24m

Canoe boom painted aluminum

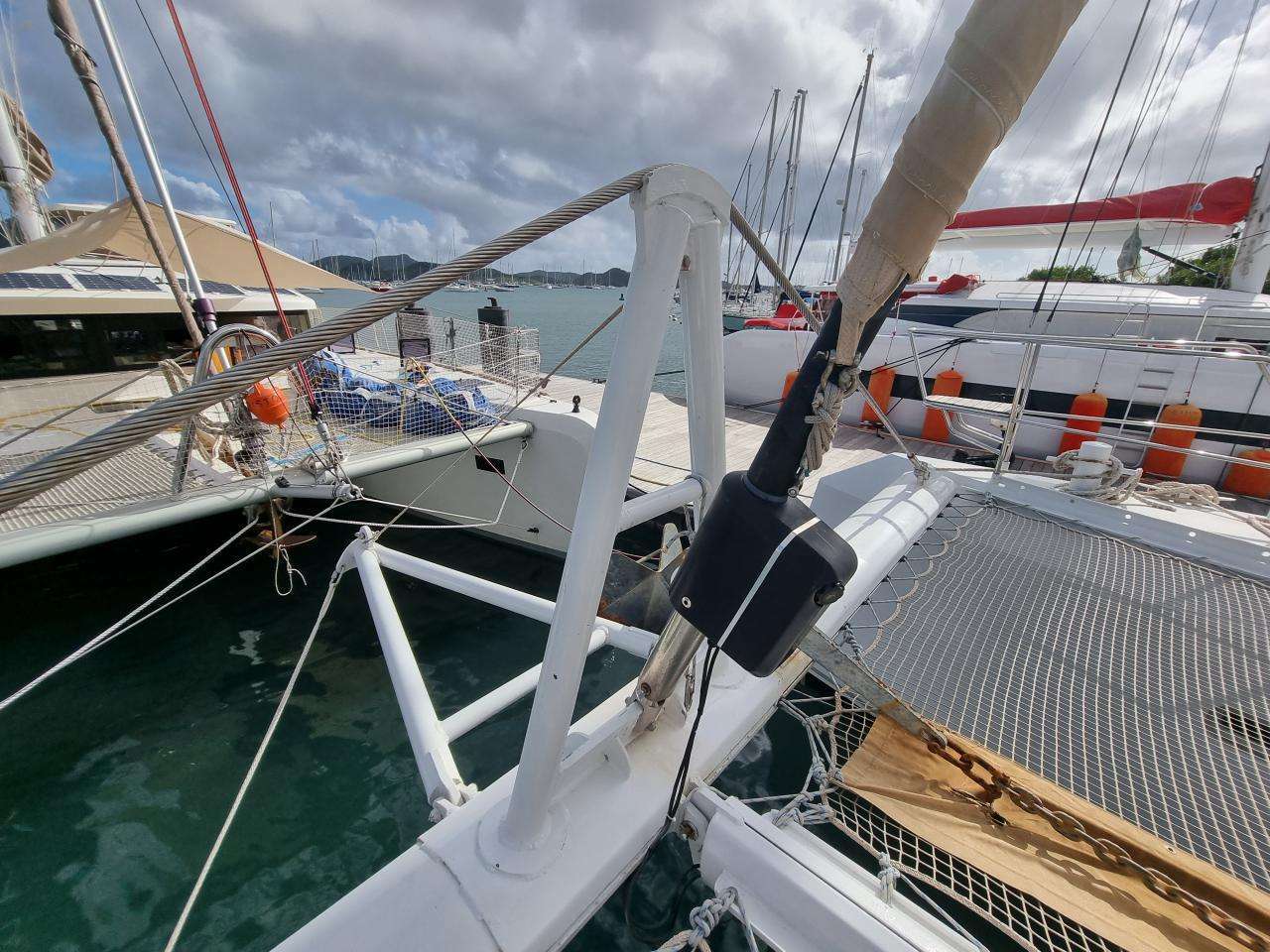

Aluminum bow sprit

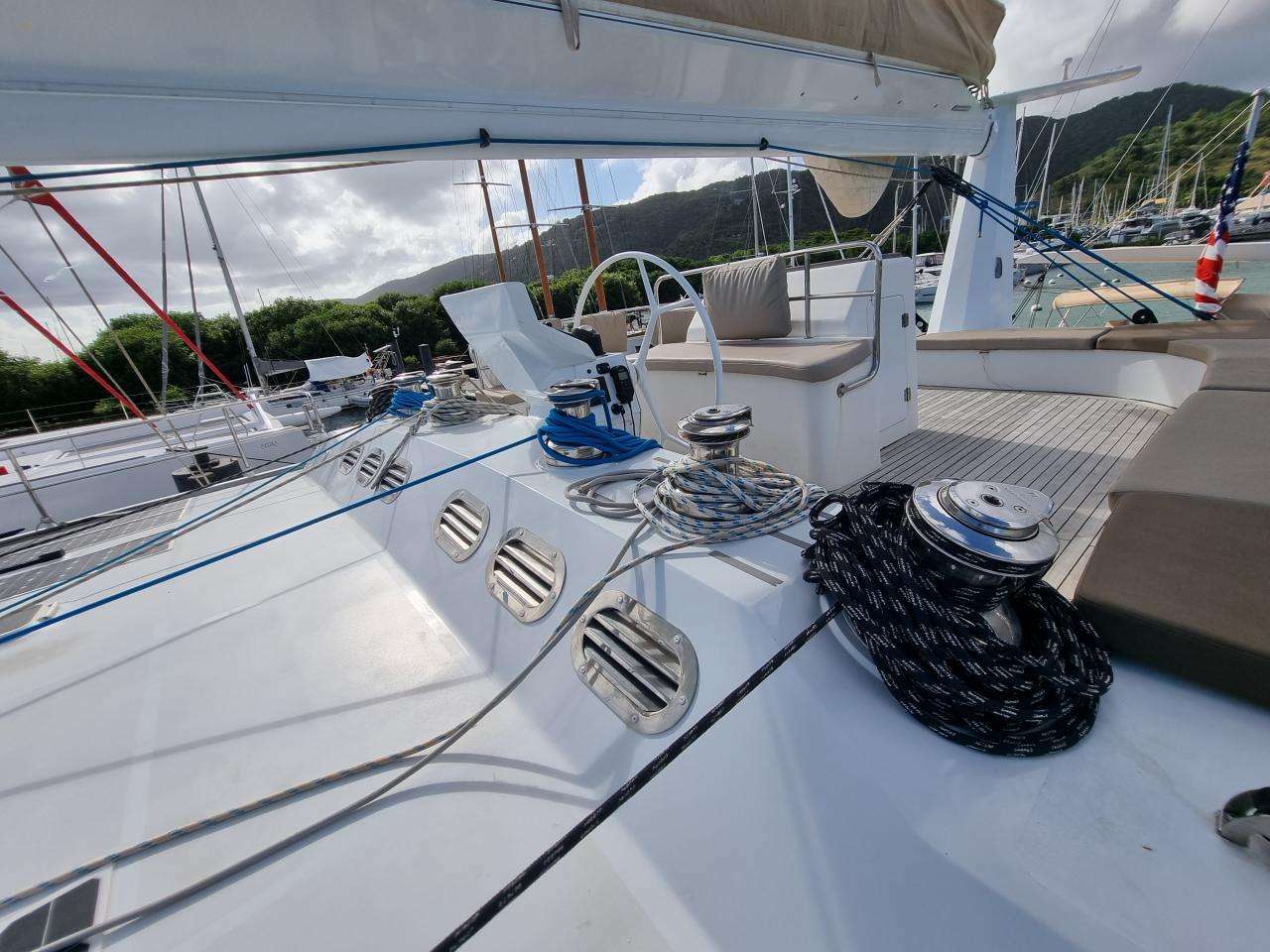

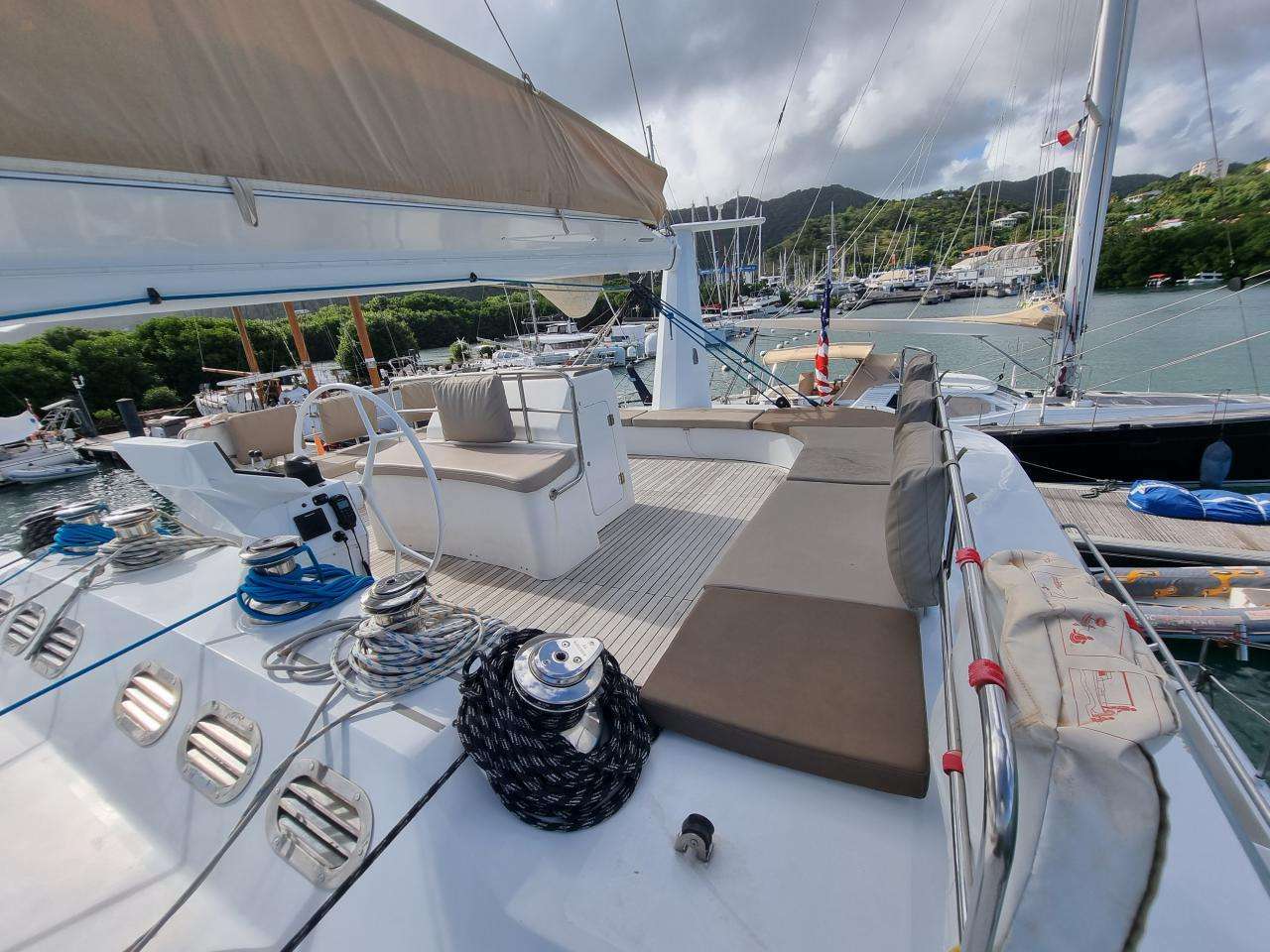

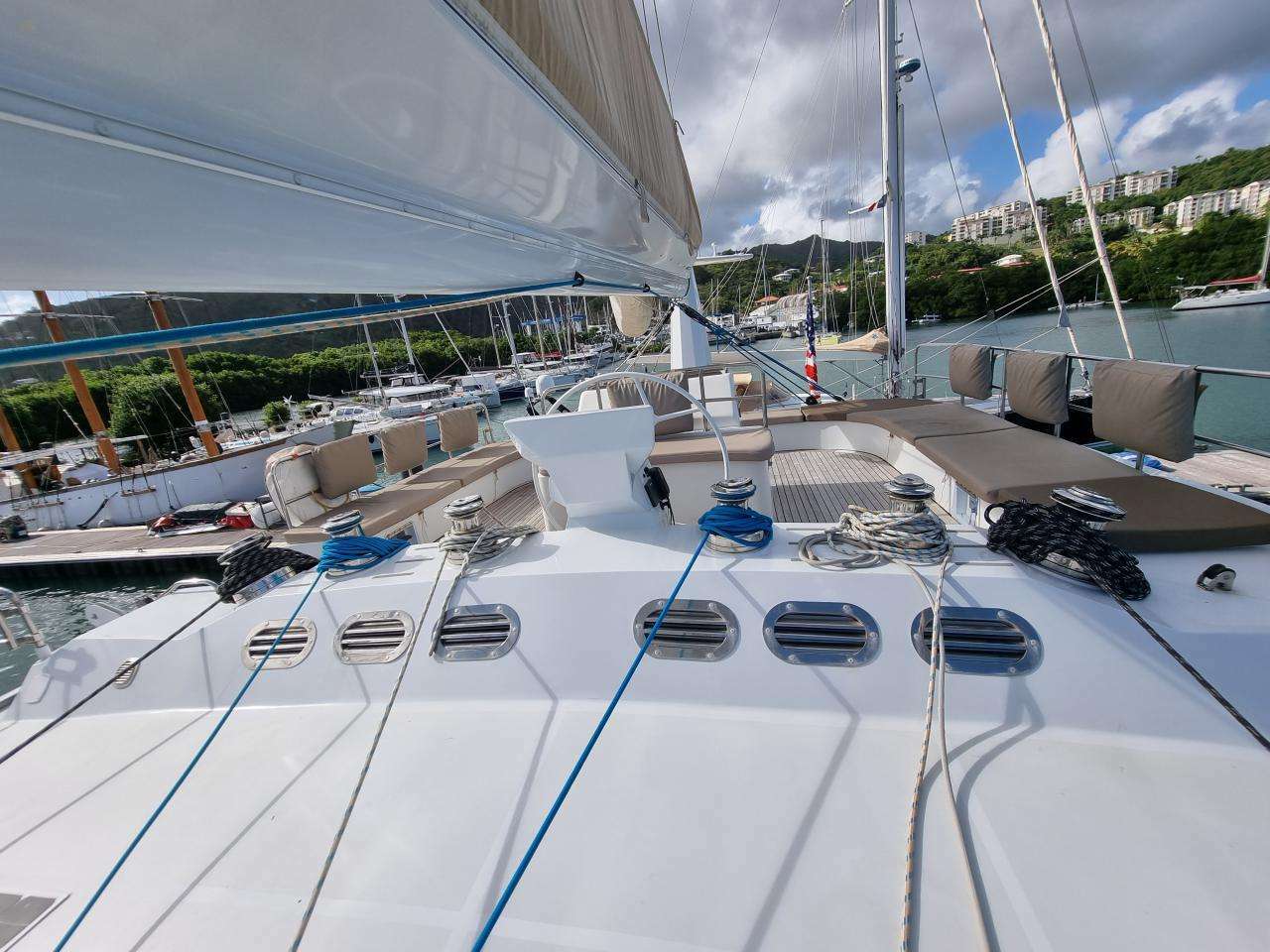

All maneuvers are brought back to the forward cockpit of the Fly

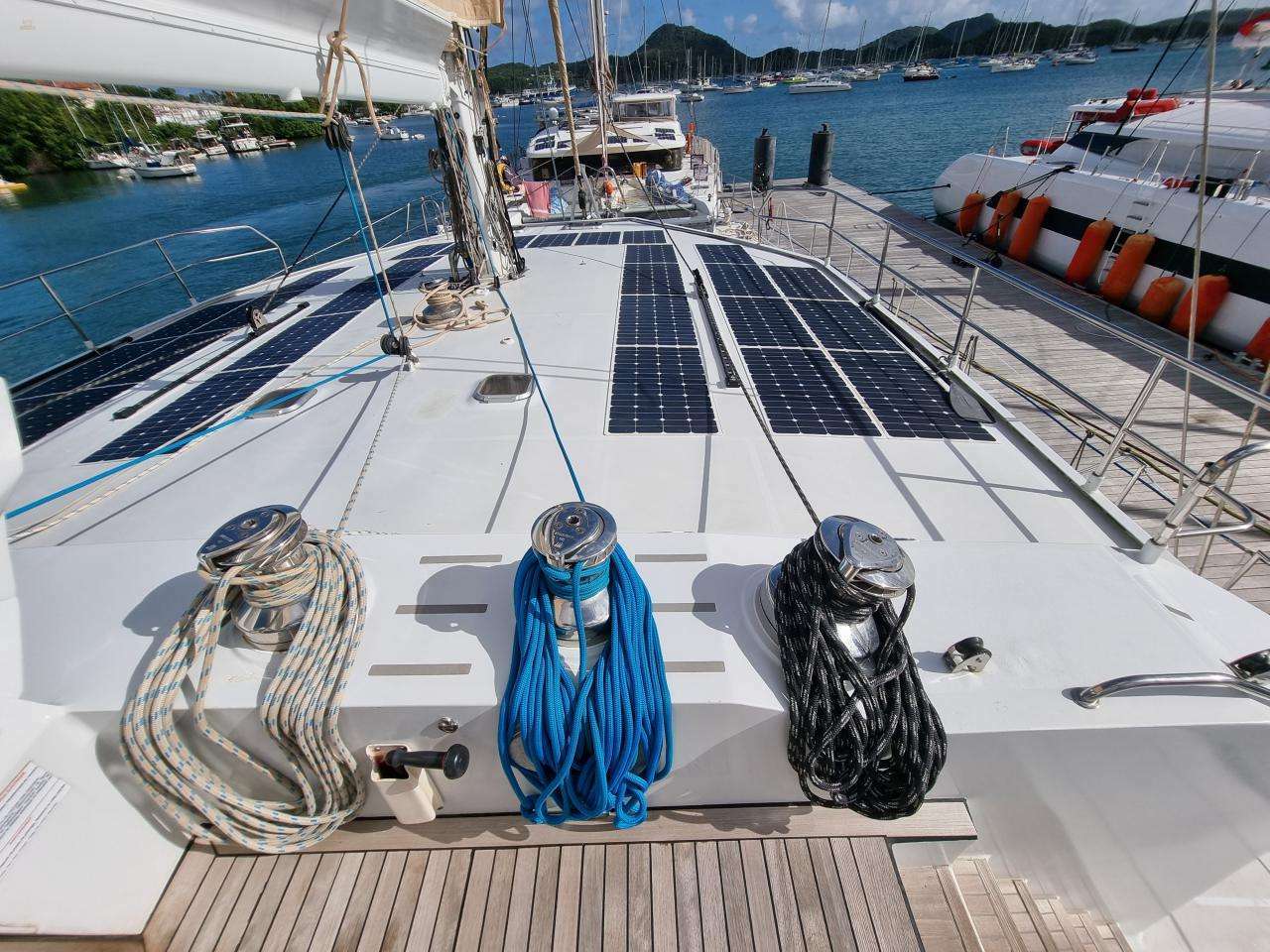

Two 68 ST Antal winches for genoa

Two 62 ST Antal winches for main sail sheet

Two 62 ST winches for reefs

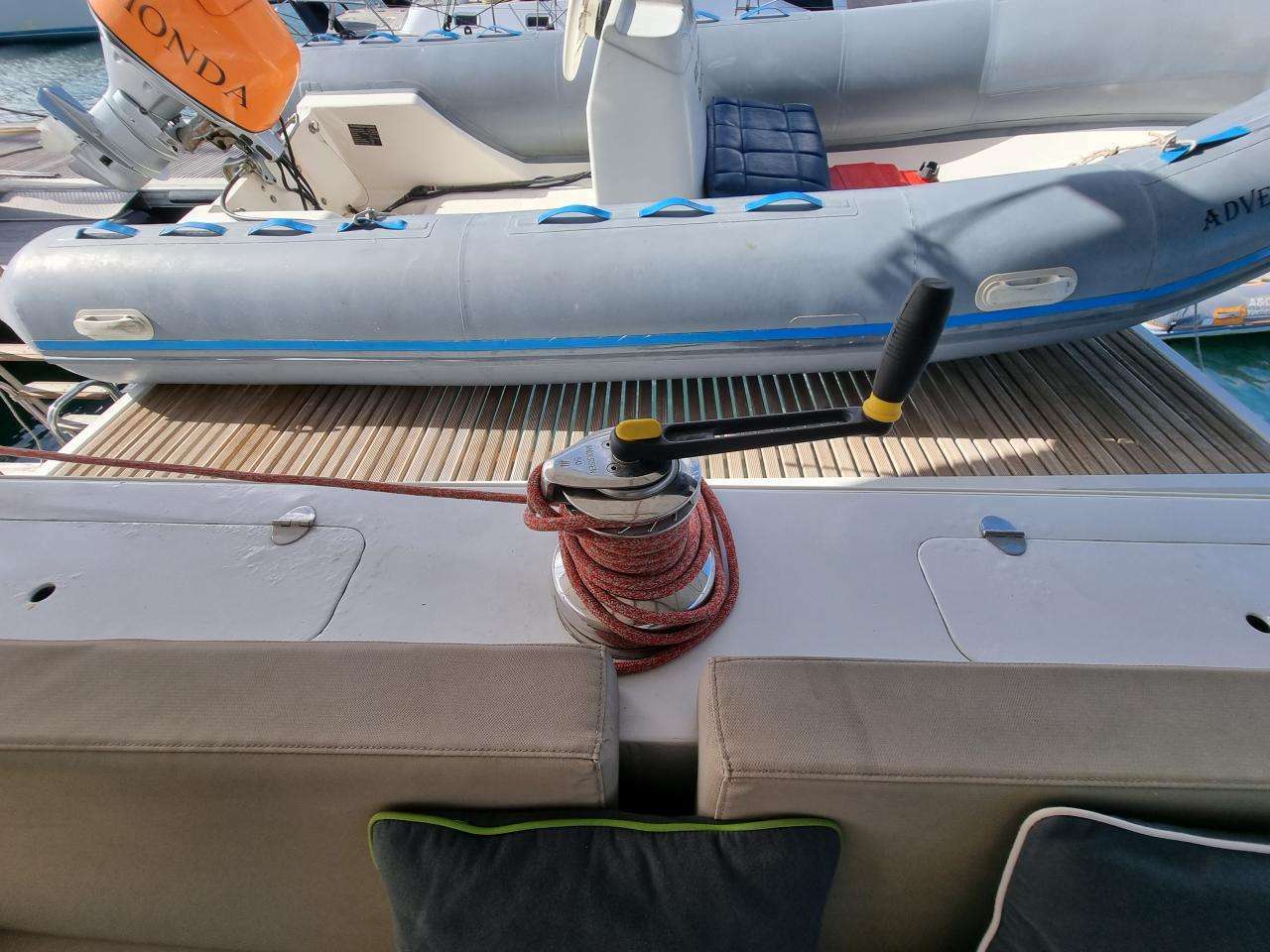

One 58ST winches in the aft cockpit for mooring and spinnaker or gennaker

One 68 ST electric winch for main sail halyard feet mast

Three winch handles

Electronics:

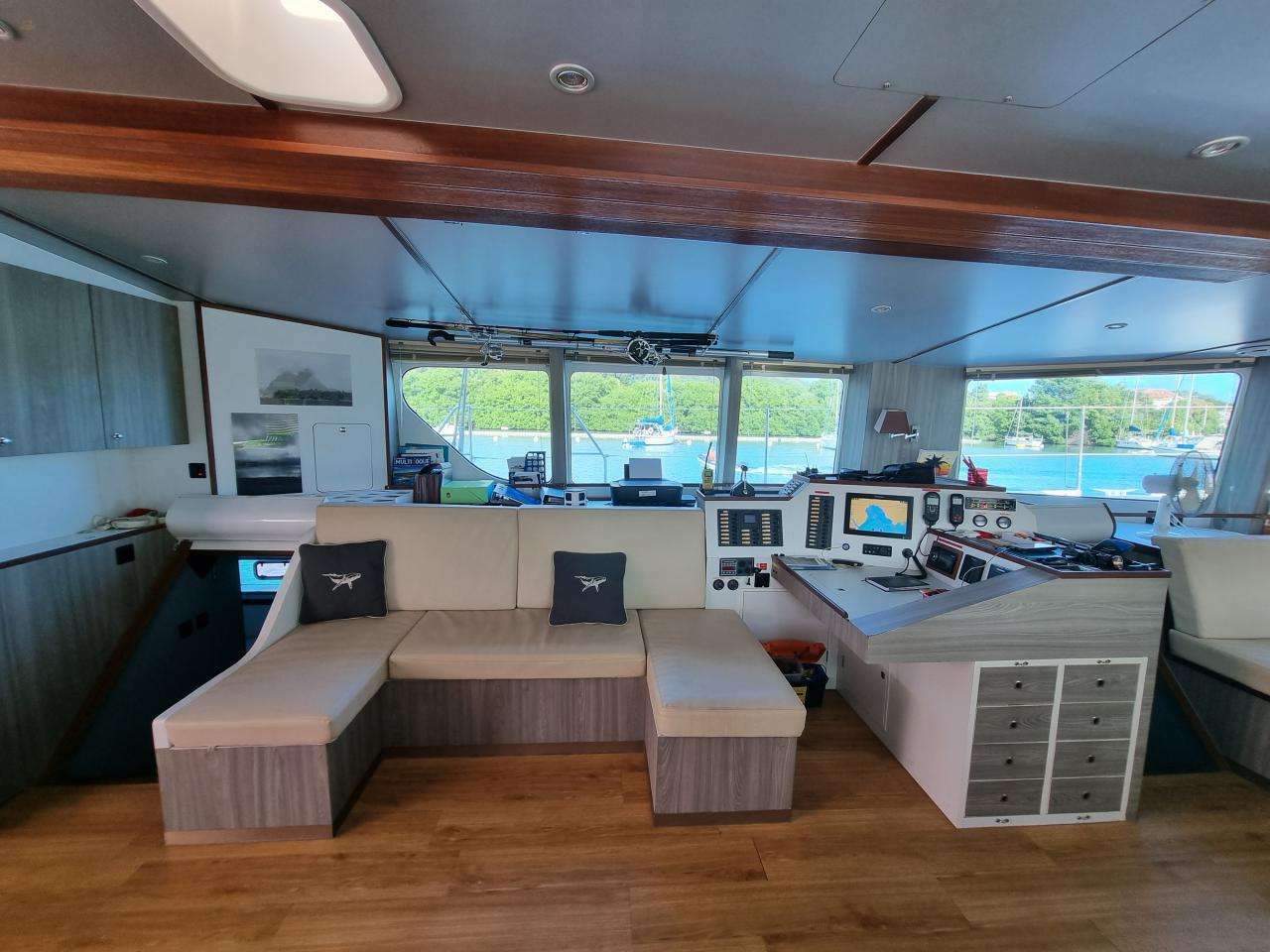

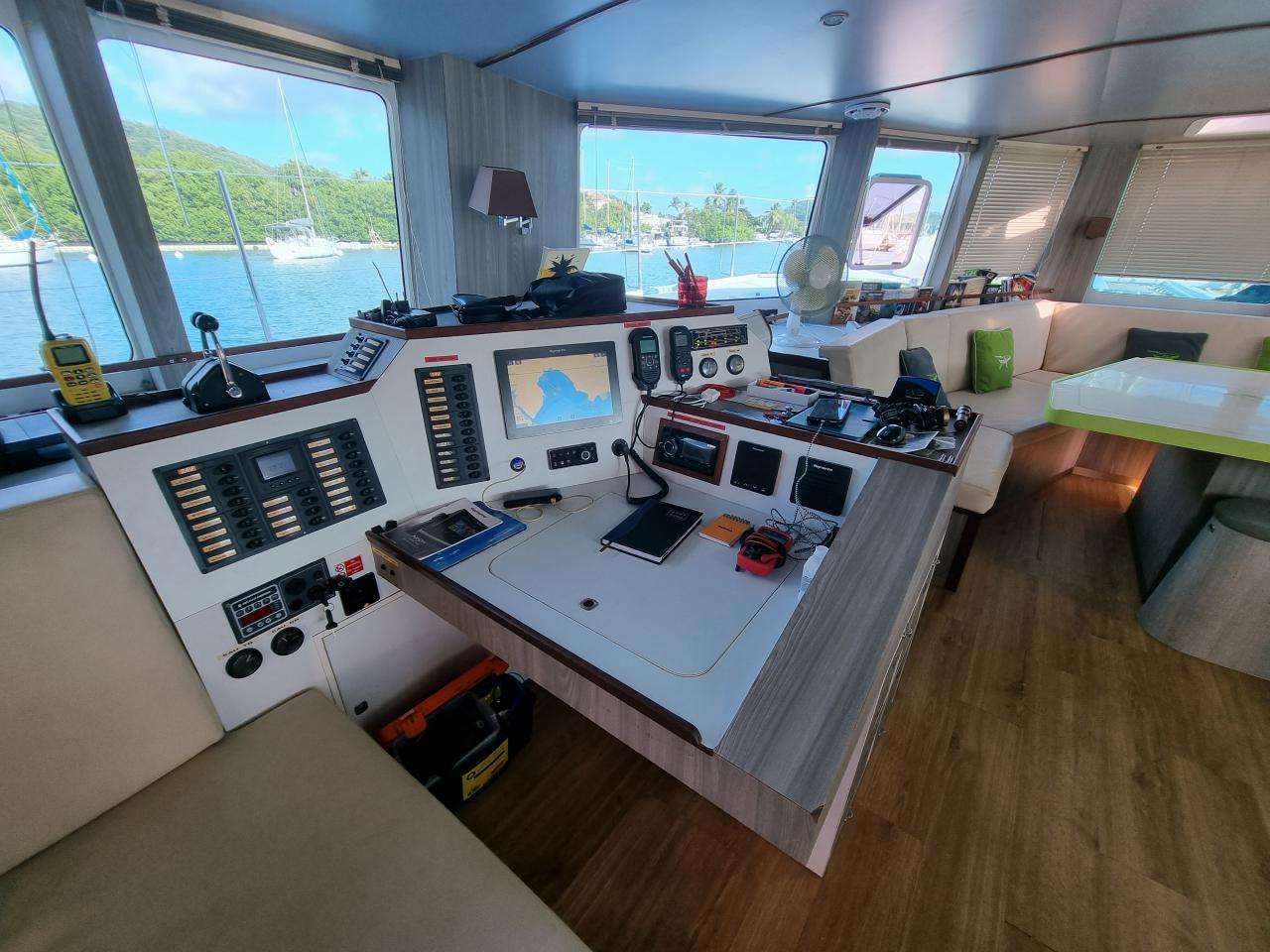

Ray Marine Axiom 15 central navigation visible from the helm station

VHF avec Ray 90 ASN VHF

AIS700 transmitter and receiver

4 pack i70s

Wireless remote control

Axiom 12  RV, Multifunction touch screen 12'' helm station

Raymarine VHF Ray 60, 70 and 90 handset

Axiom 12 RV, 12'' multifunction touch screen

Quantum Q24D Doppler Radar Antenna Graphic depth sounder

Marine audio package including

Marine stereo, Bluetooth kit two indoor speakers 100W four waterproof outdoor speakers two ways 200W

Radio package including

VHF/Hifi switch

System-Audio Video in the saloon

Location of antennas on the mast antenna holder and rear boom holder Wi-Fi antenna / 4G + Wi-Fi amplifier box and connection to the charts table

Electrical:

Double navigation and mooring lights LED light and deck light

24V power circuit

Un parc de batteries de service plomb gel 24V 850 A

Lead-acid battery 12 x  850 A x 2 vol

Two alternators coupled 24V new wave 180 A

Two starter batteries per 2x100A 12V motor with switch on other motor if required

400/240 AC circuit including

Four outlets per cabin, six in the galley one in each engine compartment, two per crew cabin

Underwater lights at aft skirt level

Generator 20 Kva 380V SCAN SDA20M

Deck:

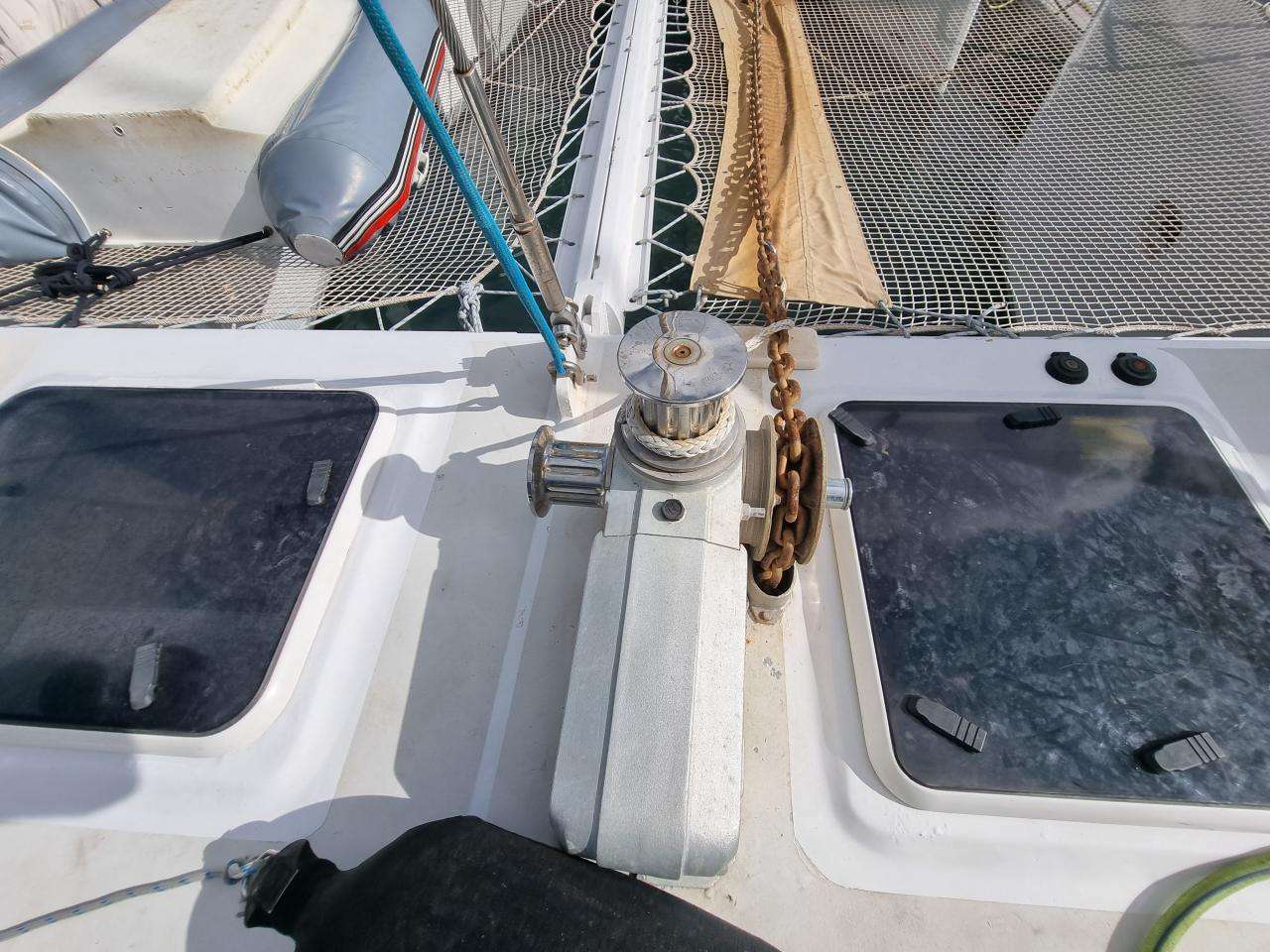

Electric windlass 2700 w in 24v horizontal gipsy with wire remote control

Spade 55 Kg main anchor with 14 mm chain 100m

Second anchor 45 kg with 14 mm chain 20 m

Third anchor 25kg with 16mm ropes 50 m

Chain and cockpit rinsing seawater pump (front and aft)

Remote control of engines and windlass for mooring and mooring

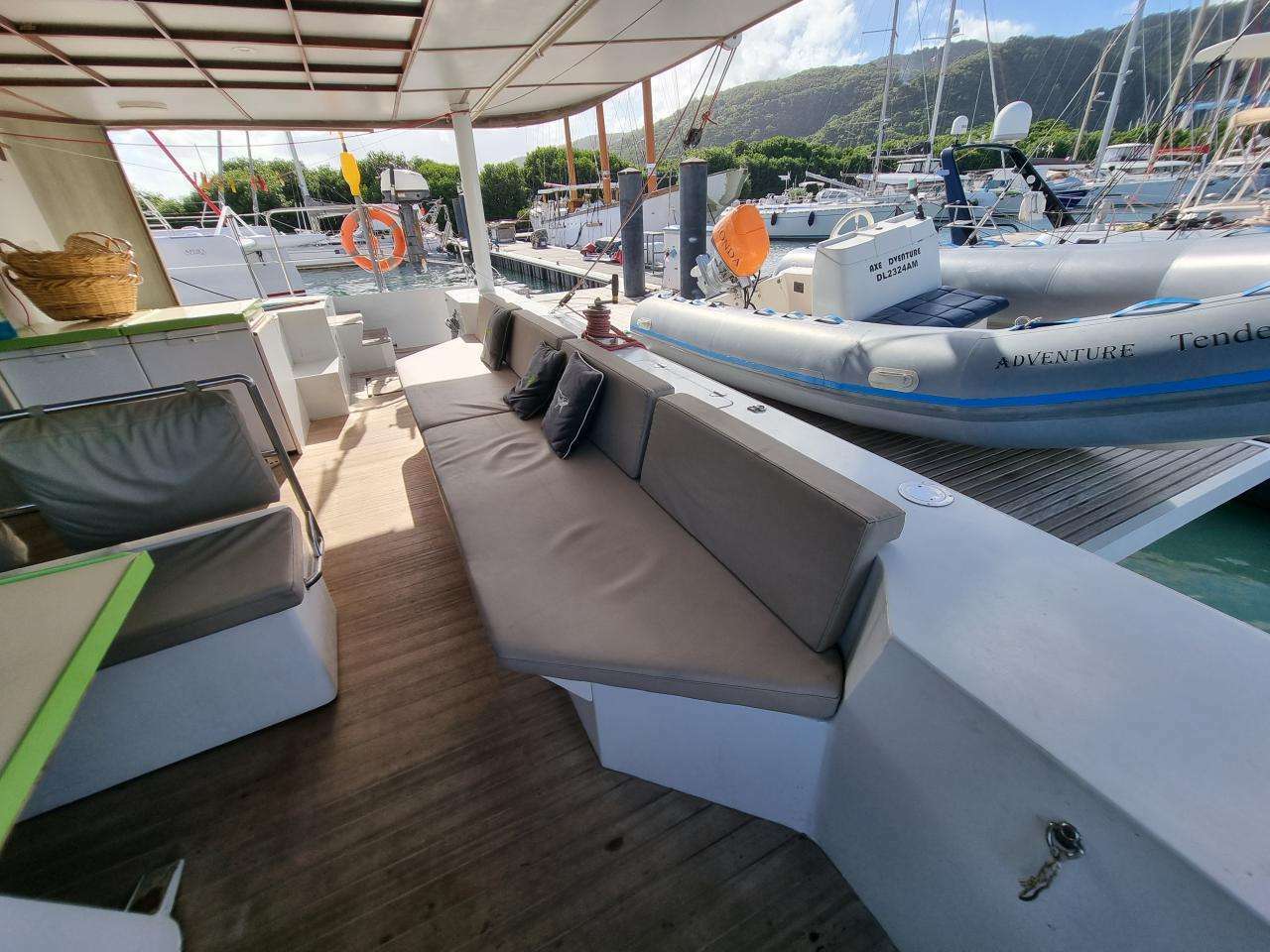

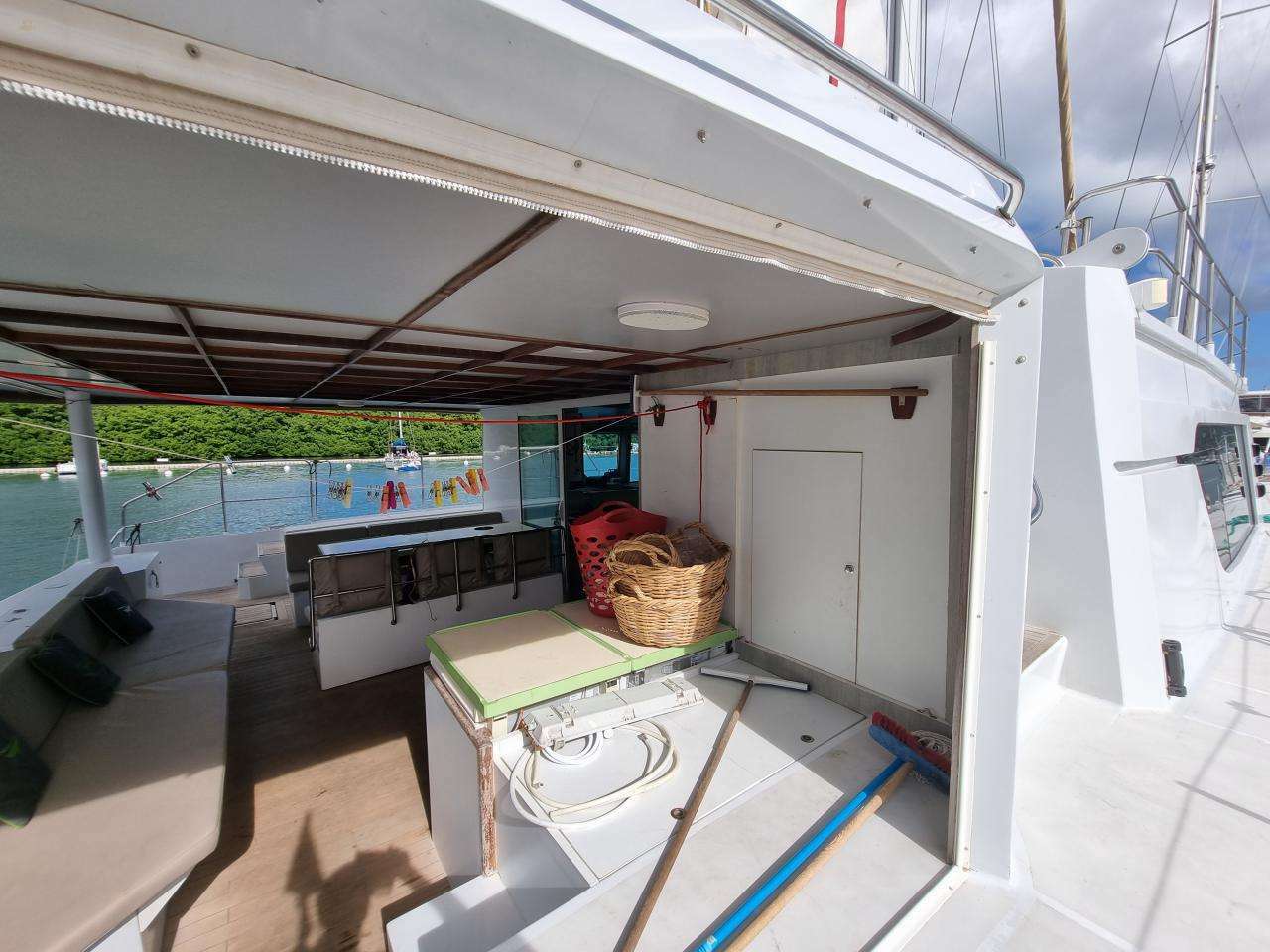

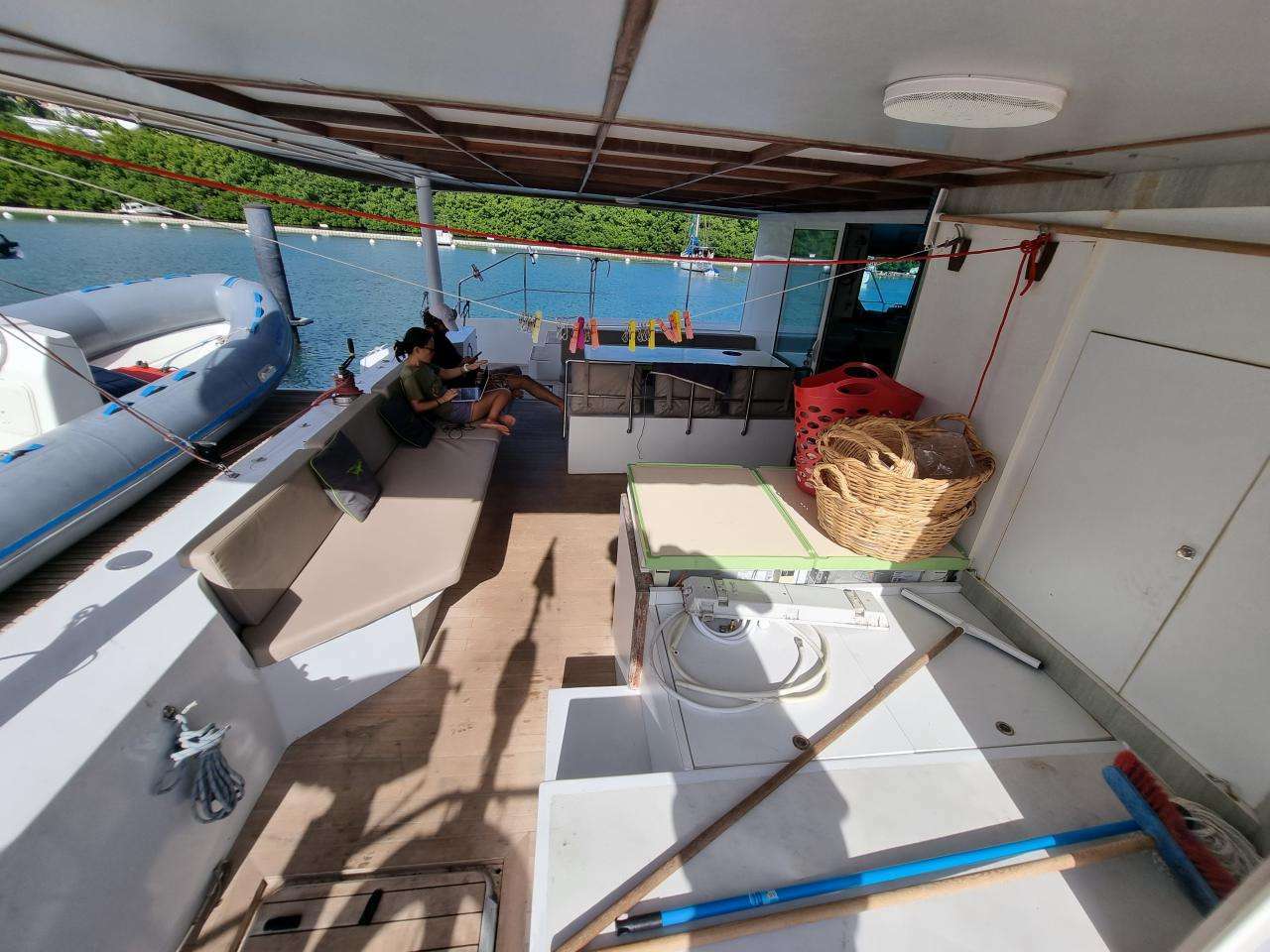

Large aft cockpit protected by the upper deck, with lighting

Seats with ample storage space

Natural teak floor and steps

Three benches with storage boxes

Six stools/ storage

One beverage fridge and freezer

Cockpit table

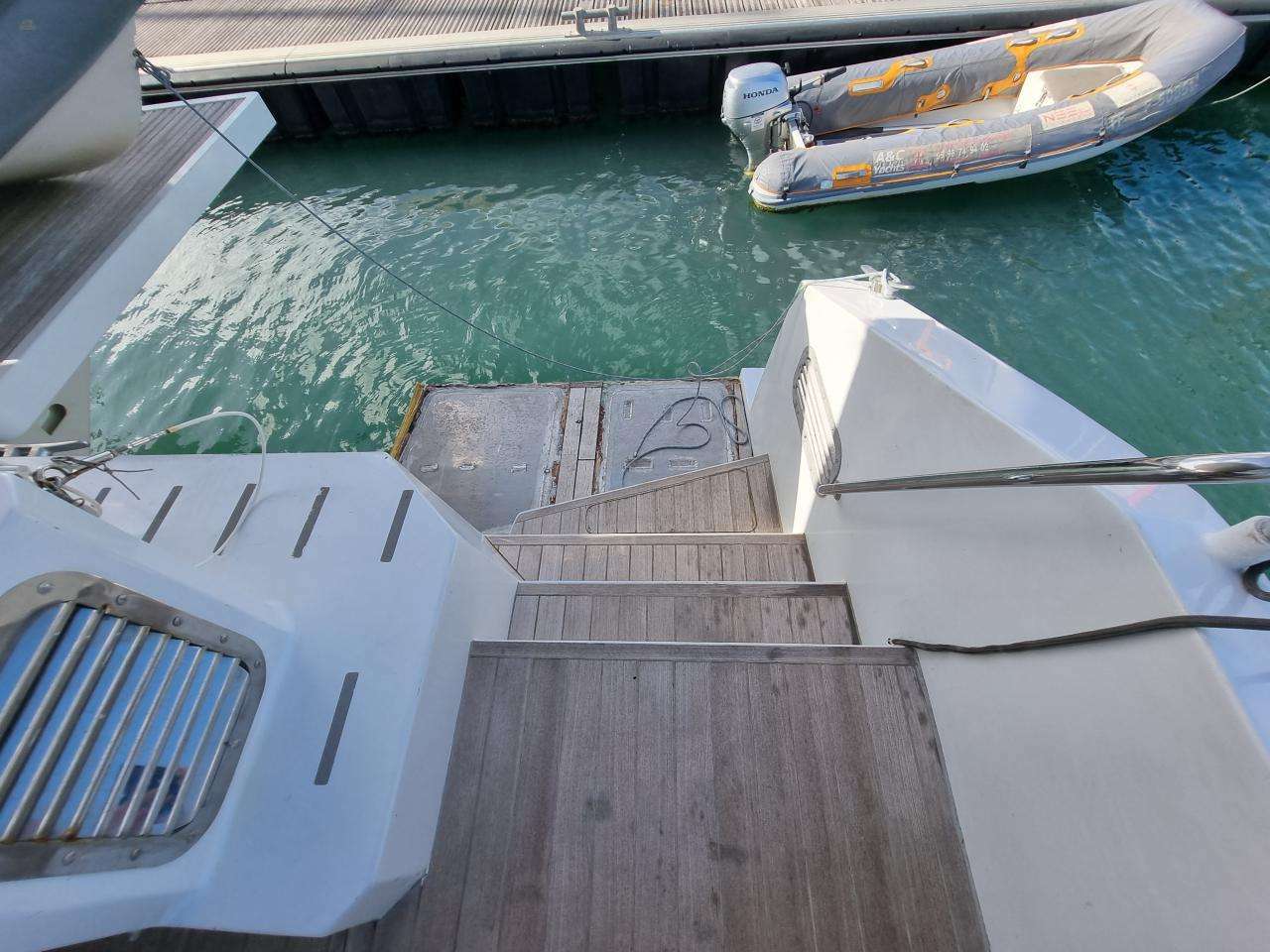

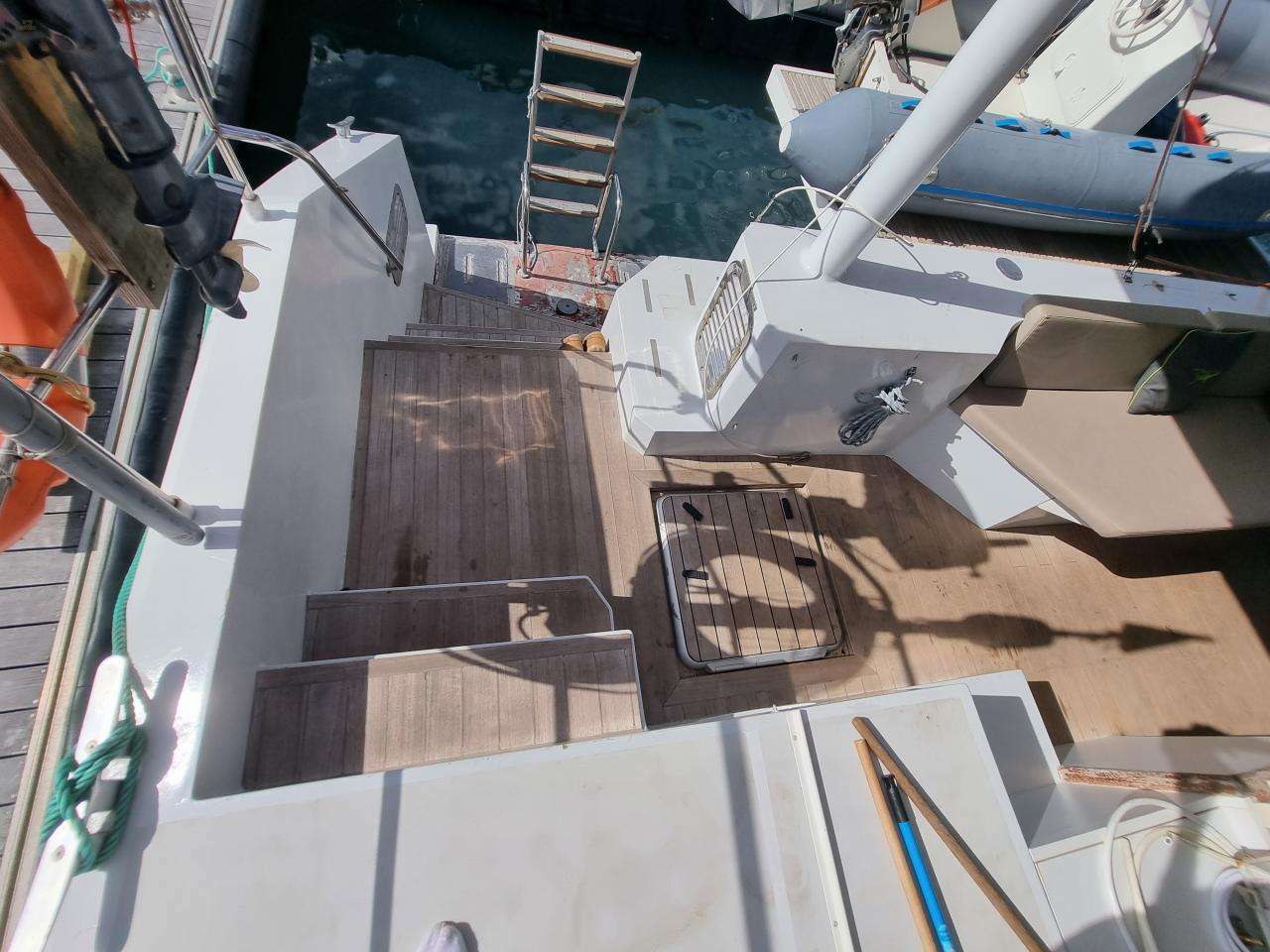

Very comfortable stainless steel swim ladder on port skirt accessible for man overboard

Aft cockpit upholstery seats and backrests

Sunbathing upholstery aft cockpit

Aft cockpit full cockpit closure

Underwater lighting at the rear apron

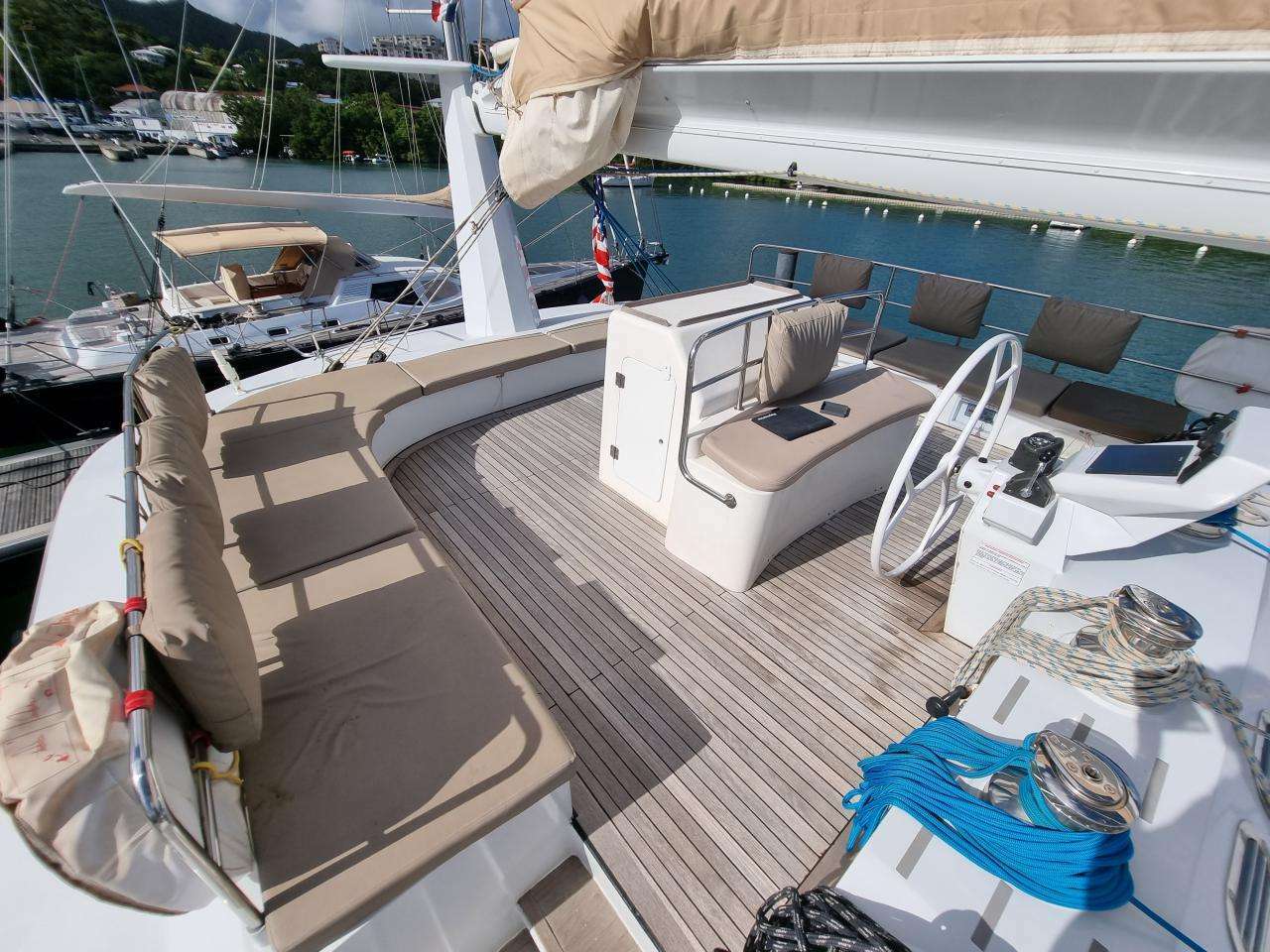

High helm station two-seater bar seat

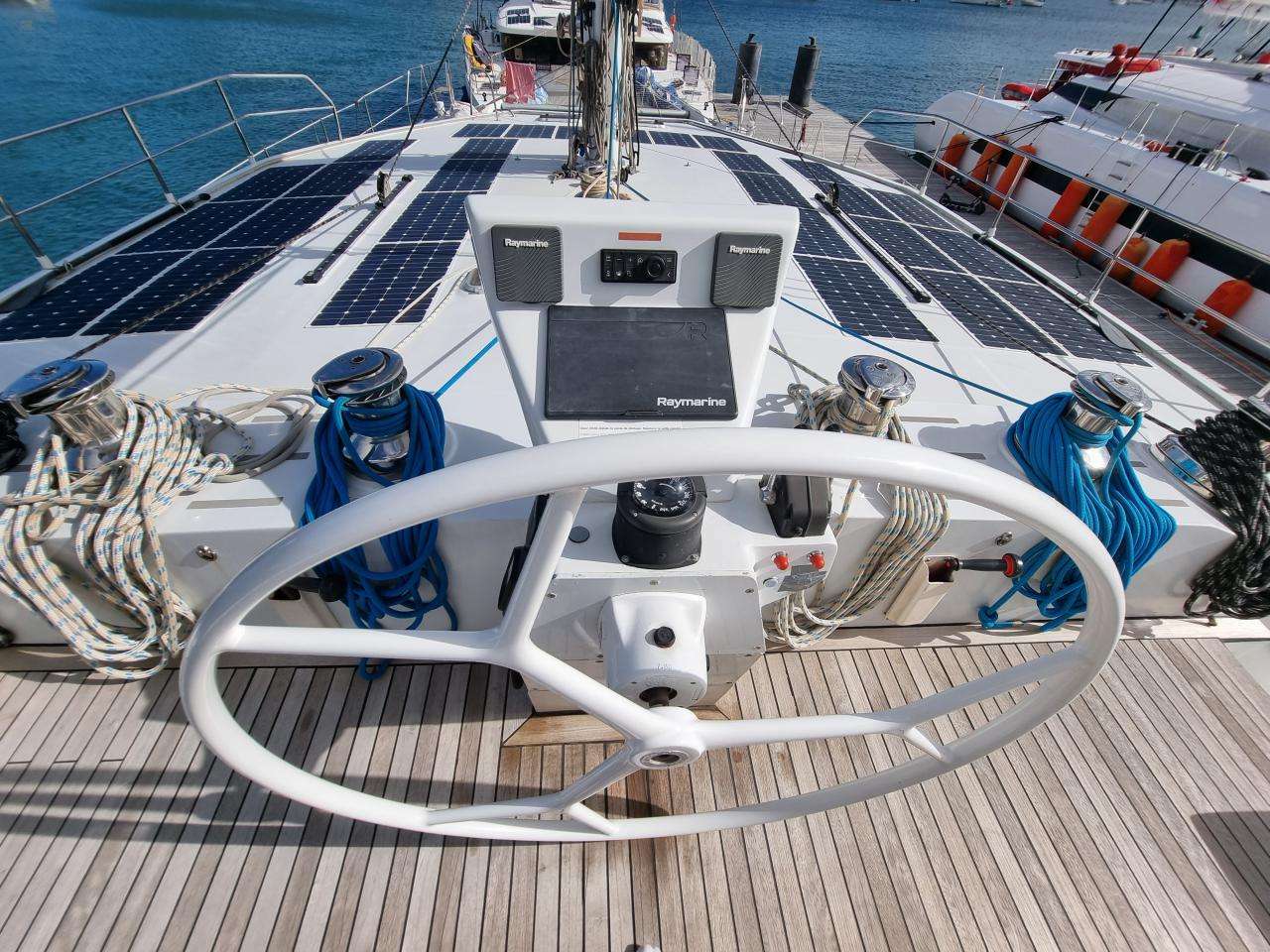

Instrument console at the helm station with magnetic compass  with ZF electric cable engine controls

Carbon steering wheel

Electric control of ZF engine inside at the card table

Additional:

Complete safety equipment for 10 pax

Life raft for 10 pax

Hypocampe Hypalon RIB dinghy 5,10 m

Out-board engine 30 hp 4 strokes steering wheel control

Moorings pack

Eight funders 120 x 40cm

Two funders spherical Fender tex 59 cm

Two hull protective fabric

Eight x 20 m polyester ropes  18 mm

Diving compressor 14m²/h with five lead, five bottles,  mask and fins

Many spare parts
